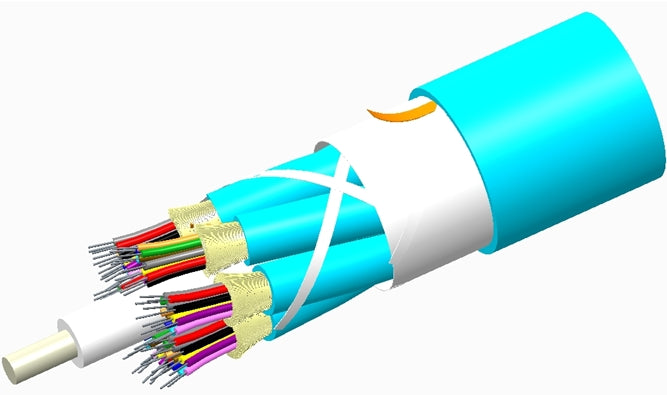

Commscope R048DS5LFMUAQ | LazrSPEED Riser Distribution Cable, 48 fiber multi-unit with 12 fiber subunits
Commscope R048DS5LFMUAQ | LazrSPEED Riser Distribution Cable, 48 fiber multi-unit with 12 fiber subunits

Commscope R048DS5LFMUAQ | LazrSPEED Riser Distribution Cable, 48 fiber multi-unit with 12 fiber subunits

Part Number: 371-COMOM3-TBD-48
0 Review(s)
Write a Review
Availability:
$6.57
Retail Price:$6.82
Your Savings:$0.25(4%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Commscope R048DS5LFMUAQ | LazrSPEED Riser Distribution Cable, 48 fiber multi-unit with 12 fiber subunits



https://www.alldataresource.com/assets/images_commscope/representative_image.jpg

Representative Image

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / Latin America / Middle East/Africa / North America
PortfolioCommScope
Product TypeFiber indoor cable



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Cable TypeDistribution
Construction TypeNon-armored
Fiber Type, quantity48
Fibers per Subunit, quantity12
Jacket ColorAqua
Subunit TypeGel-free
Subunit, quantity4
Total Fiber Count48



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Buffer Tube/Subunit Diameter5.95 mm / 0.234 in
Diameter Over Jacket15.92 mm / 0.627 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Minimum Bend Radius, loaded239 mm / 9.409 in
Minimum Bend Radius, unloaded159 mm / 6.26 in
Tensile Load, long term, maximum400 N / 89.924 lbf
Tensile Load, short term, maximum1335 N / 300.12 lbf
Compression10 N/mm / 57.101 lb/in
Compression Test MethodFOTP-41 / IEC 60794-1 E3
Flex100 cycles
Flex Test MethodFOTP-104 / IEC 60794-1 E6
Impact5.88 N-m / 52.042 in lb
Impact Test MethodFOTP-25 / IEC 60794-1 E4
StrainSee long and short term tensile loads
Strain Test MethodFOTP-33 / IEC 60794-1 E1
Twist10 cycles
Twist Test MethodFOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum192 m / 629.921 ft



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Optical Specifications

Fiber TypeOM3, LazrSPEED 300 / OM3, LazrSPEED 300



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature-20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification StandardsANSI/ICEA S-83-596 / Telcordia GR-409
Environmental SpaceRiser
Flame Test ListingNEC OFNR (ETL) and c(ETL)
Flame Test MethodUL 1666



https://www.alldataresource.com/assets/images_commscope/environmental_test_specifications.jpg

Environmental Test Specifications

Heat Age-20 °C to +85 °C (-4 °F to +185 °F)
Heat Age Test MethodIEC 60794-1 F9
Low High Bend-20 °C to +70 °C (-4 °F to +158 °F)
Low High Bend Test MethodFOTP-37 / IEC 60794-1 E11
Temperature Cycle-20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test MethodFOTP-3 / IEC 60794-1 F1



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Cable weight212 kg/km / 142.457 lb/kft



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
Statement of Compliance RoHS/REACHClick to View
700208218 Product specificationsClick to View
Customer and Technical Support, Training, Software/Firmware, Repair ServicesClick to View
CommScope Extended System WarrantyClick to View
CommScope Limited Product WarrantyClick to View
