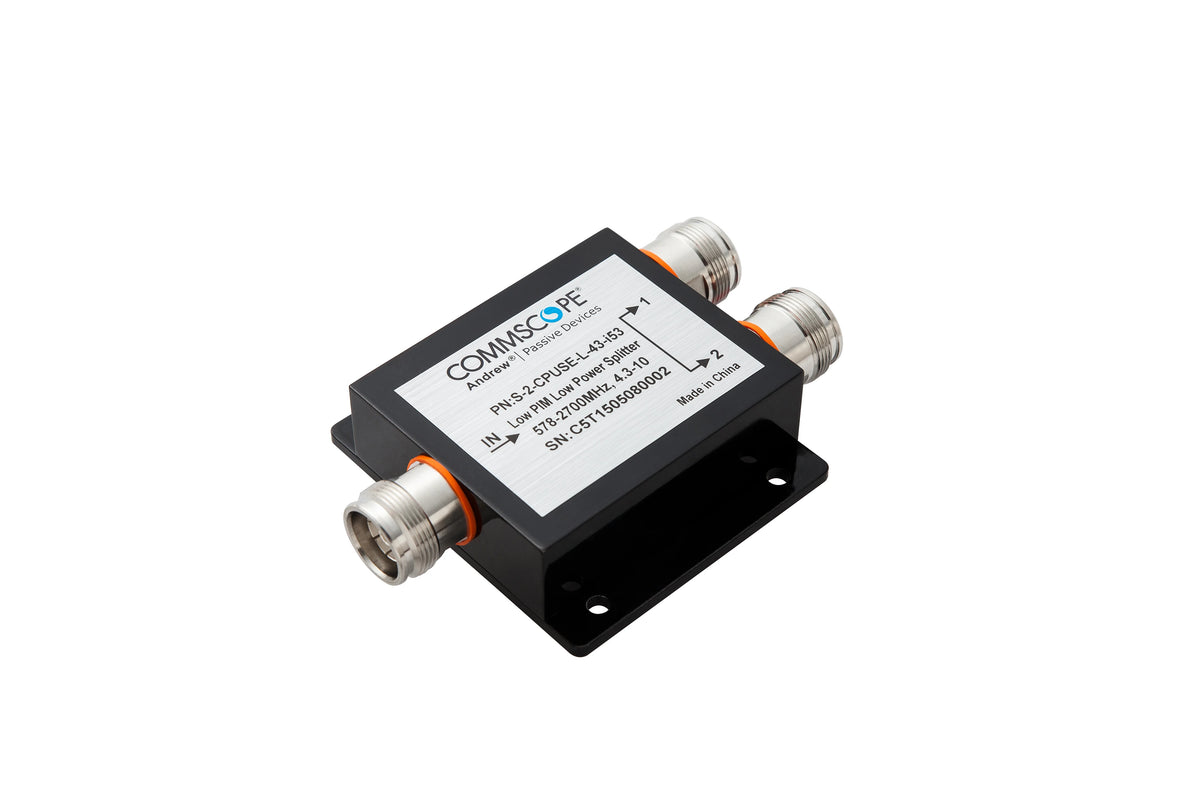

Commscope S2CPUSEL43I53 | Two-way Low PIM Low Power Splitter, 555–2...
Regular price
$158.01
Unit price
Brand: CommScope
|
SKU:
709739
Regular price
$158.01
Unit price
Description
Description
Commscope S2CPUSEL43I53 | Two-way Low PIM Low Power Splitter, 555–2700 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Power splitter |
General Specifications
| Device Type | Splitter |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 24 mm / 0.945 in |
|---|---|
| Width | 79 mm / 3.11 in |
| Length | 107 mm / 4.213 in |
Electrical Specifications
| 3rd Order IMD | -153 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 80 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 2700 MHz |
| Peak Power, maximum | 1 kW |
| Power Rating, combining | 0.5 W |
| Power Rating, Splitting | 80 W |
| Reflected Power, maximum | 3 W |
| Split Loss | 3 dB |
Mechanical Specifications
| Coupling Nut Proof Torque | 7 N-m / 61.955 in lb |
|---|
Environmental Specifications
| Operating Temperature | -25 °C to +85 °C (-13 °F to +185 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 40 mm / 1.575 in |
|---|---|
| Width, packed | 100 mm / 3.937 in |
| Length, packed | 130 mm / 5.118 in |
| Weight, gross | 0.32 kg / 0.705 lb |
| Weight, net | 0.28 kg / 0.617 lb |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
