Brand: CommScope
|
SKU:
470472
Commscope SD-003-KIT1 | Static Desiccator Dehydrator, with parallel mounting accessories kit
Regular price
$120.20
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope SD-003-KIT1 | Static Desiccator Dehydrator, with parallel...
Regular price
$120.20
Unit price
Brand: CommScope
|
SKU:
470472
Regular price
$120.20
Unit price
Description
Description
Commscope SD-003-KIT1 | Static Desiccator Dehydrator, with parallel mounting accessories kit
Features and Benefits
- To meet our global customer’s RoHS environmental needs, we have changed our desiccant to a cobalt-chloride free desiccant. The compliant desiccant is orange when dry and turns green when saturated.
Specifications
Specifications
Product Classification
| Product Type | Dehydrator |
|---|
General Specifications
| Dehydrator Type | Desiccant |
|---|---|
| Desiccant Capacity | 283 liters (10 cu ft) at 80% RH, +20 °C |
| Mounting | Pole |
| Port Count | 1 |
| Port Type | 3/8 in PE tube x 1/8 NPT |
Dimensions
| Product Height | 127 mm / 5 in |
|---|---|
| Product Width | 50.8 mm / 2 in |
| Product Depth | 50.8 mm / 2 in |
| Volume Capacity, maximum | 0.0283 m³ / 0.999 ft³ |
| Volume Capacity, minimum | 0 m³ / 0 ft³ |
Environmental Specifications
| Operating Temperature | -29 °C to +49 °C (-20 °F to +120 °F) |
|---|
Packaging and Weights
| Height, packed | 86 mm / 3.386 in |
|---|---|
| Width, packed | 165.1 mm / 6.5 in |
| Depth, packed | 121.9 mm / 4.799 in |

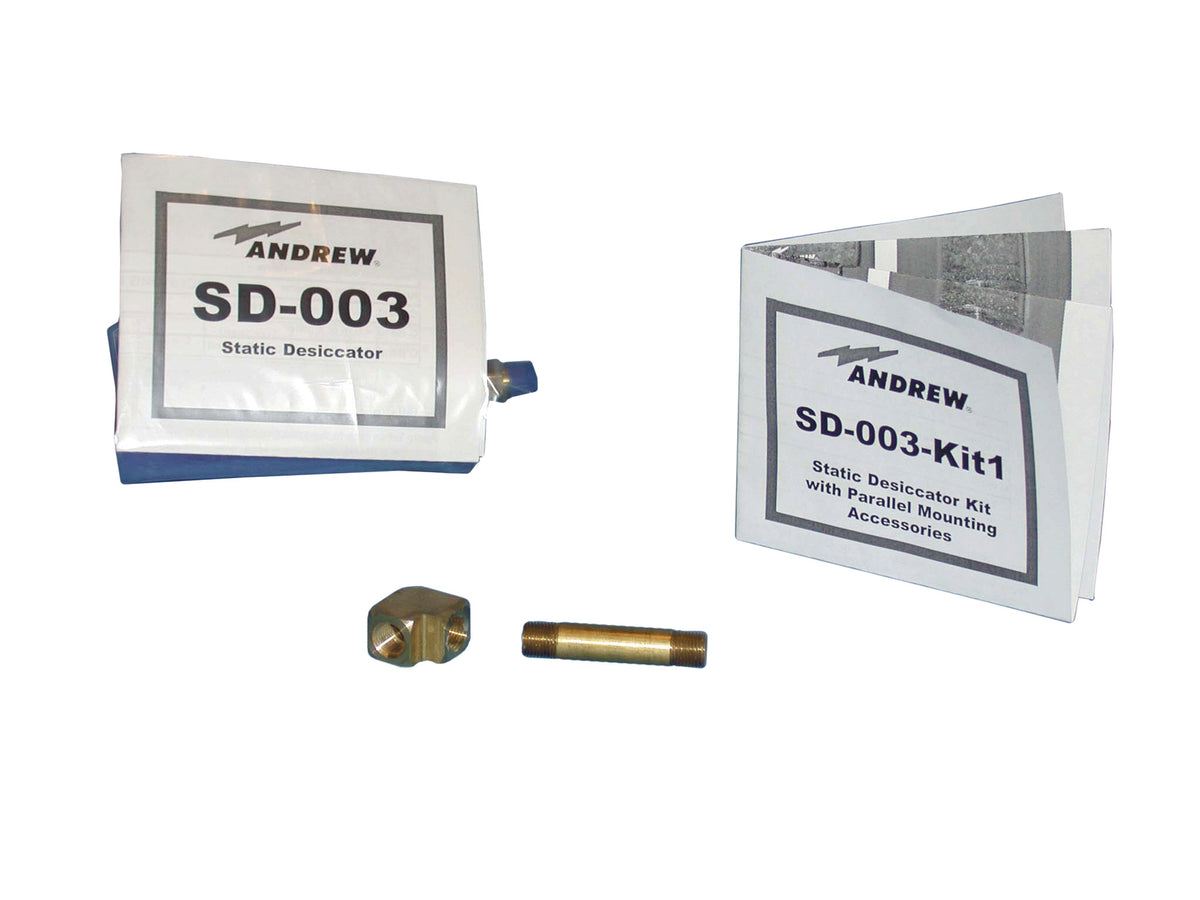

| Included | 90º elbow fitting / Brass pipe nipple / Instruction sheet / Static desiccator |
| Weight, gross | 0.9 kg / 1.984 lb |
| Weight, net | 0.2 kg / 0.441 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- SD-003 Static Desiccator with UV Filter
- SD-003-KIT1 Static Desiccator Kit with Parallel Mounting Accessories
- Material Safety Data Sheet for ADCOA, Orange Silica Gel
- Statement of Compliance RoHS/REACH
- SD-003-KIT1 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Limited Product Warranty
