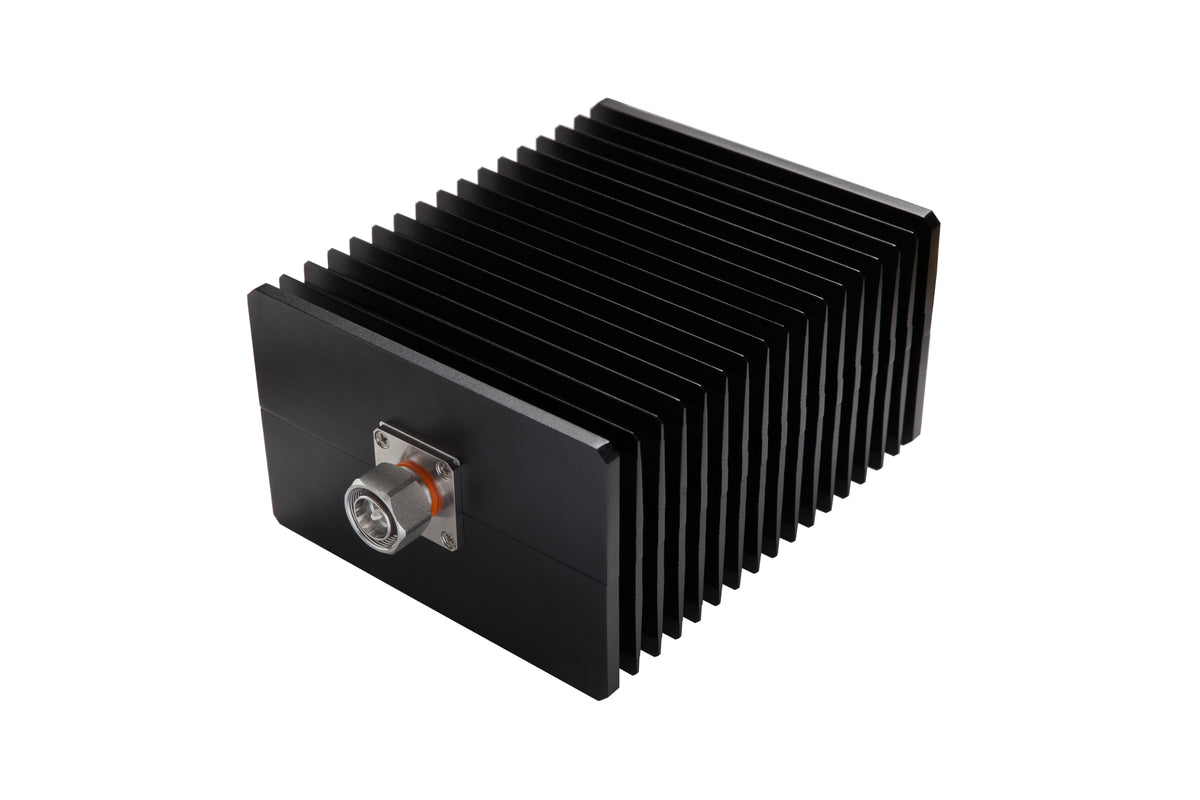

Commscope T-100-43-M | Termination Load, 0–3000 MHz
Regular price
$282.00
Unit price
Brand: CommScope
|
SKU:
881795
Regular price
$282.00
Unit price
Description
Description
Commscope T-100-43-M | Termination Load, 0–3000 MHz
Specifications
Specifications
Derating Curve
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 88.6 mm / 3.488 in |
|---|---|
| Width | 140 mm / 5.512 in |
| Length | 190 mm / 7.48 in |
Electrical Specifications
| Return Loss, minimum | 20.8 dB |
|---|---|
| Average Power, maximum | 100 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.2 |
Environmental Specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 89 mm / 3.504 in |
|---|---|
| Width, packed | 142 mm / 5.591 in |
| Length, packed | 192 mm / 7.559 in |
| Weight, gross | 2.3 kg / 5.071 lb |
| Weight, net | 2.1 kg / 4.63 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
