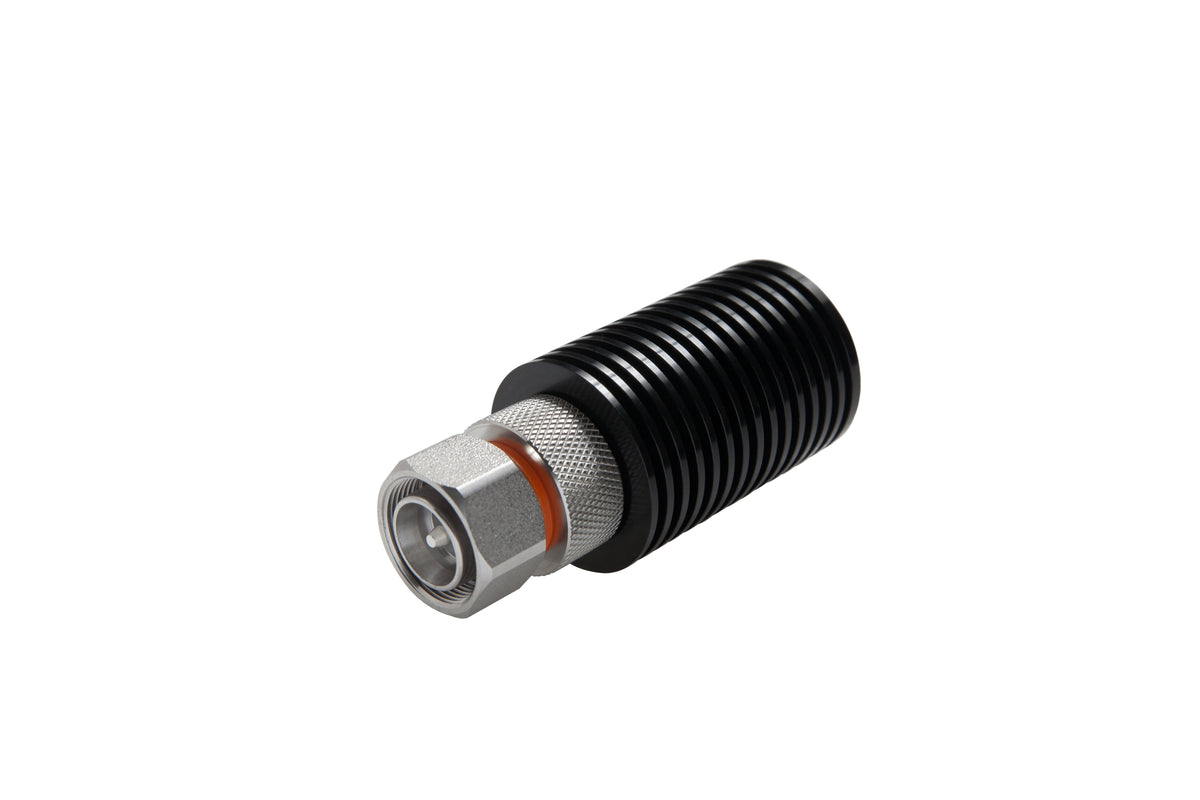

Commscope T-25-43-M | Termination Load, 0–3000 MHz
Regular price
$125.93
Unit price
Brand: CommScope
|
SKU:
881788
Regular price
$125.93
Unit price
Description
Description
Commscope T-25-43-M | Termination Load, 0–3000 MHz
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 80 mm / 3.15 in |
|---|---|
| Diameter, maximum | 35 mm / 1.378 in |
Electrical Specifications
| Return Loss, minimum | 23 dB |
|---|---|
| Average Power, maximum | 25 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.15 |
Environmental Specifications
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 100 mm / 3.937 in |
|---|---|
| Width, packed | 55 mm / 2.165 in |
| Length, packed | 60 mm / 2.362 in |
| Weight, gross | 0.24 kg / 0.529 lb |
| Weight, net | 0.21 kg / 0.463 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
