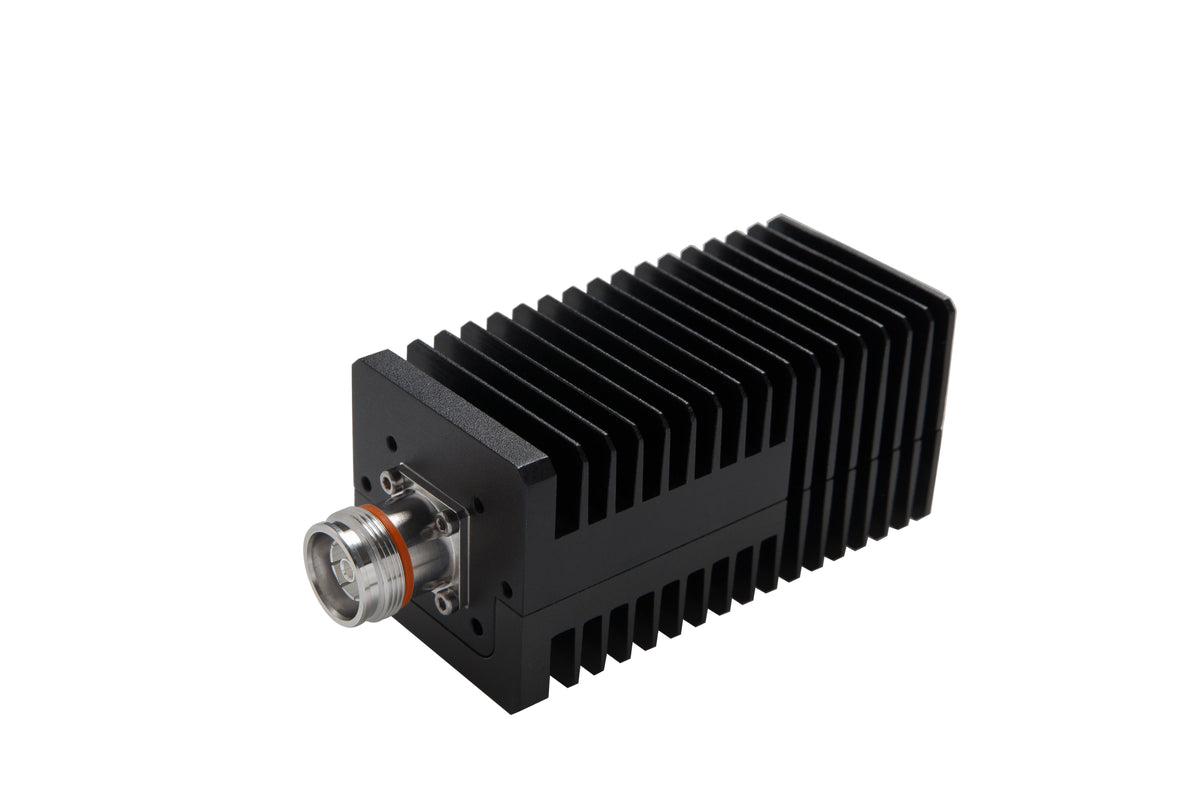

Commscope T-50-43-F | Termination Load, 0–3000 MHz
Regular price
$215.00
Unit price
Brand: CommScope
|
SKU:
881791
Regular price
$215.00
Unit price
Description
Description
Commscope T-50-43-F | Termination Load, 0–3000 MHz
Specifications
Specifications
Derating Curve
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
|---|---|
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 50 mm / 1.969 in |
|---|---|
| Width | 50 mm / 1.969 in |
| Length | 125 mm / 4.921 in |
Electrical Specifications
| Return Loss, minimum | 23 dB |
|---|---|
| Average Power, maximum | 50 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.15 |
Environmental Specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 58 mm / 2.283 in |
|---|---|
| Width, packed | 78 mm / 3.071 in |
| Length, packed | 158 mm / 6.22 in |
| Weight, gross | 0.47 kg / 1.036 lb |
| Weight, net | 0.44 kg / 0.97 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
