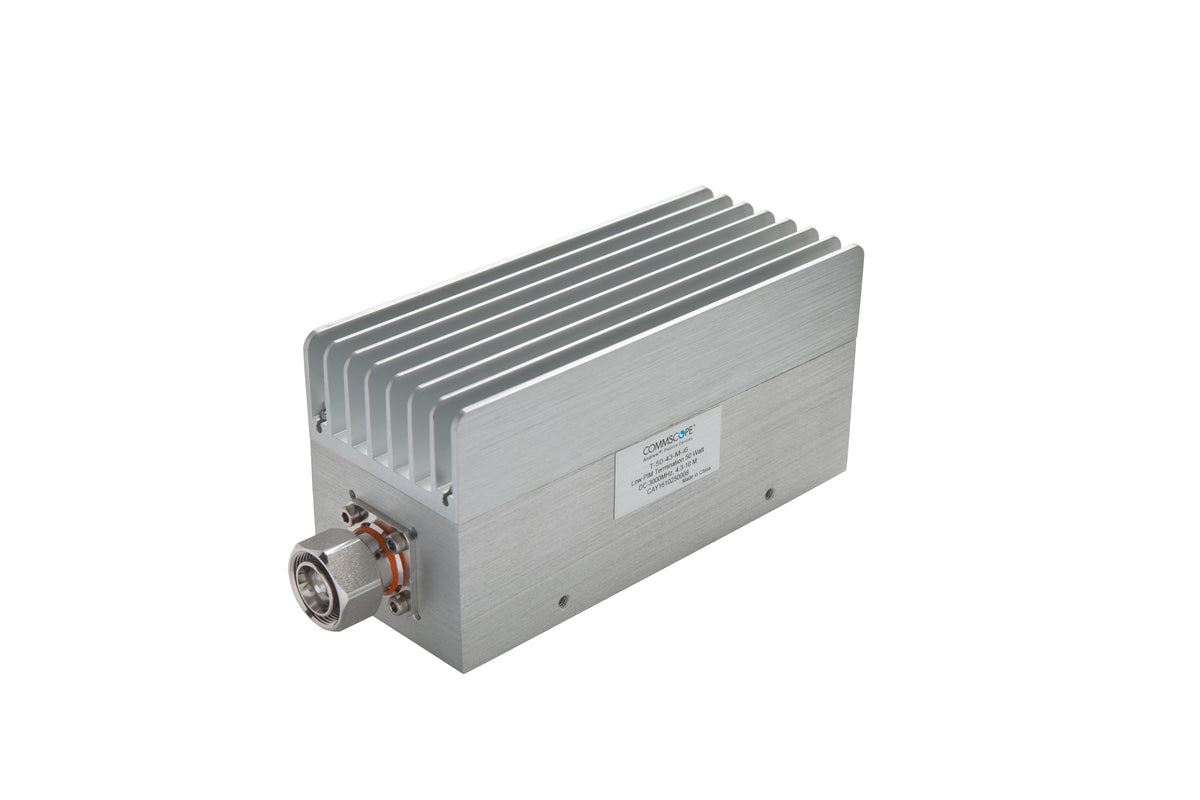

Commscope T-50-43-M-I6 | Low PIM Termination 50 W Load, DC-3GHz
Regular price
$970.77
Unit price
Brand: CommScope
|
SKU:
881794
Regular price
$970.77
Unit price
Description
Description
Commscope T-50-43-M-I6 | Low PIM Termination 50 W Load, DC-3GHz
Specifications
Specifications
Derating Curve
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Product Type | Termination Load |
General Specifications
| Device Type | Termination Load |
|---|---|
| Application | Indoor/Outdoor |
| Color | Silver |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 74 mm / 2.913 in |
|---|---|
| Width | 60 mm / 2.362 in |
| Length | 172.5 mm / 6.791 in |
Electrical Specifications
| 3rd Order IMD | -162 dBc |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 19 dB |
| Average Power, maximum | 50 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.25 |
Environmental Specifications
| Operating Temperature | -25 °C to +50 °C (-13 °F to +122 °F) |
|---|---|
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Height, packed | 75 mm / 2.953 in |
|---|---|
| Width, packed | 92 mm / 3.622 in |
| Length, packed | 212 mm / 8.346 in |
| Weight, gross | 1.5 kg / 3.307 lb |
| Weight, net | 1.3 kg / 2.866 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
