Brand: CommScope | SKU: 470843

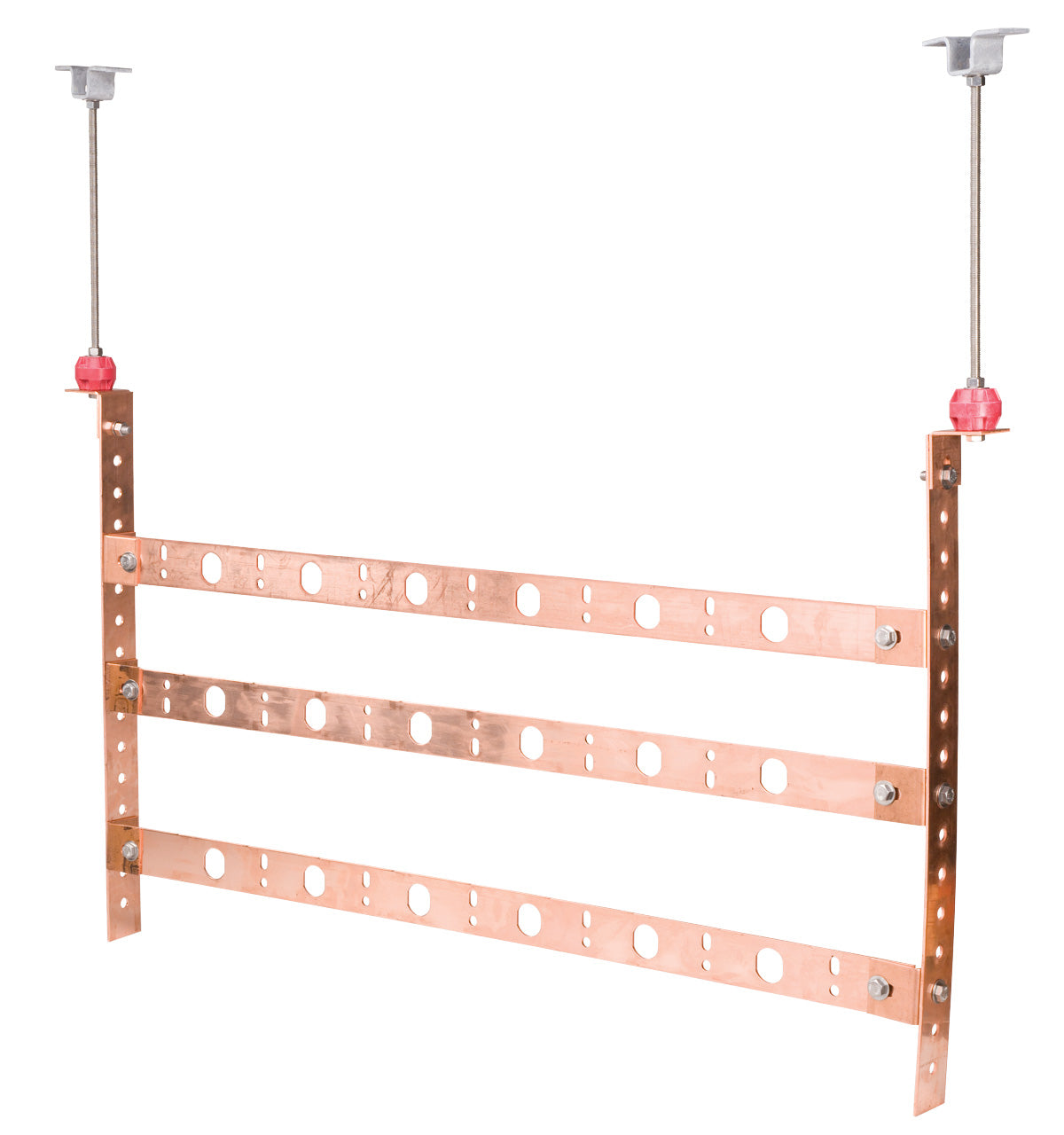

Commscope UGBA-36 | Universal Ground Bar Assembly, three six-position ground bars, for 7-16 DIN, type N, or bolt-grounded surge arrestors

$588.72

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope UGBA-36 | Universal Ground Bar Assembly, three six-position ground bars, for 7-16 DIN, type N, or bolt-grounded surge arrestors

Specifications

Product Classification

Product Type	Grounding bar
Ordering Note	CommScope non-standard product

Dimensions

Height	50.8 mm / 2 in
Length	457.2 mm / 18 in
Material Thickness	6.35 mm / 0.25 in
Hole Size	1.3 in
Hole Distance, center to center	63.5 mm / 2.5 in

Material Specifications

Material Type	Copper

Packaging and Weights

Height, packed	655.32 mm / 25.8 in
Width, packed	248.92 mm / 9.8 in
Length, packed	58.42 mm / 2.3 in
Included	Bulkhead mounting bar / Grounding bar / Insulators / Mounting brackets / Threaded rod / Universal hardware
Packaging quantity	1
Weight, gross	7.7 kg / 16.976 lb

Regulatory Compliance/Certifications

ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
