Brand: CommScope | SKU: 373COMOM3TBDLSZH02MT

Commscope Z-002-DS-5L-FSUBK/D | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 2 fiber single-unit

$2.97

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope Z-002-DS-5L-FSUBK/D | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 2 fiber single-unit

Specifications

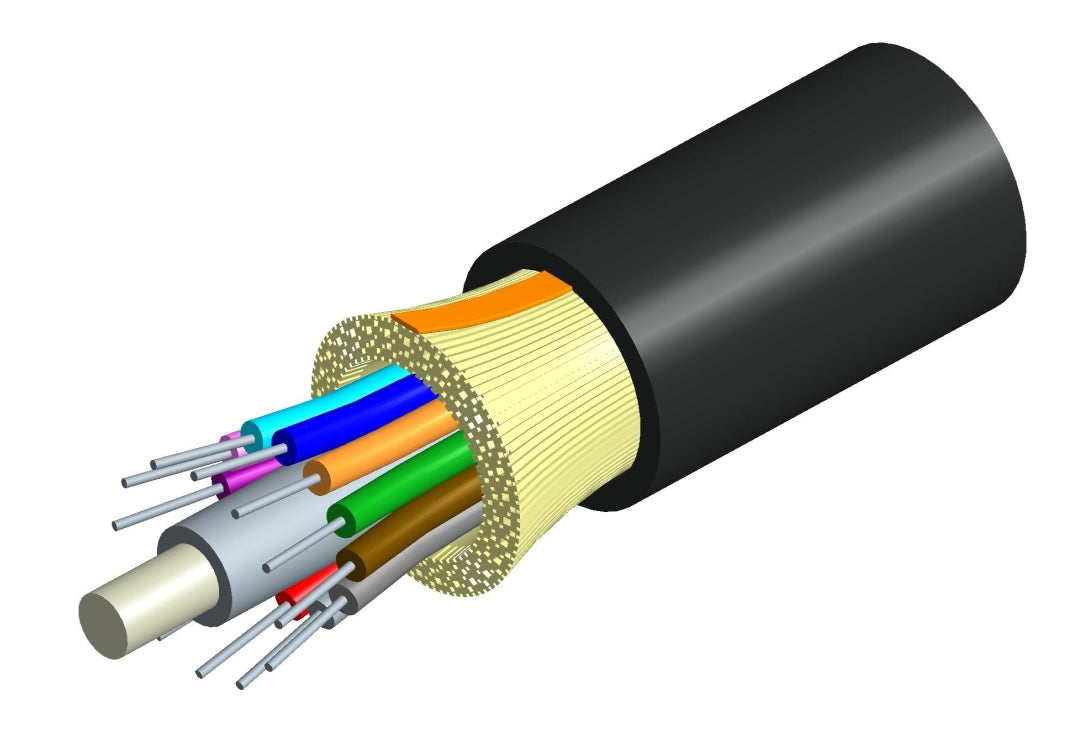

Representative Image

Click on image to enlarge.

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio	CommScope
Product Type	Fiber indoor/outdoor cable

General Specifications

Cable Type	Distribution
Construction Type	Non-armored
Fiber Type, quantity	2
Jacket Color	Black
Total Fiber Count	2

Dimensions

Diameter Over Jacket	3.8 mm / 0.15 in

Mechanical Specifications

Minimum Bend Radius, loaded	58 mm / 2.283 in
Minimum Bend Radius, unloaded	38 mm / 1.496 in
Tensile Load, long term, maximum	300 N / 67.443 lbf
Tensile Load, short term, maximum	1000 N / 224.809 lbf
Compression	22 N/mm / 125.623 lb/in
Compression Test Method	FOTP-41 / IEC 60794-1 E3
Flex	100 cycles
Flex Test Method	FOTP-104 / IEC 60794-1 E6
Impact	5.88 N-m / 52.042 in lb
Impact Test Method	FOTP-25 / IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 / IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum	500 m / 1640.42 ft

Optical Specifications

Fiber Type	OM3, LazrSPEED 300 / OM3, LazrSPEED 300

Environmental Specifications

Installation temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-104-696 / EN 187105 / Telcordia GR-20 (water penetration) / Telcordia GR-409
EN50575 CPR Cable EuroClass Fire Performance	Dca
EN50575 CPR Cable EuroClass Smoke Rating	s1a
EN50575 CPR Cable EuroClass Droplets Rating	d1
EN50575 CPR Cable EuroClass Acidity Rating	a2
Environmental Space	Low Smoke Zero Halogen (LSZH) / Riser
Flame Test Listing	NEC OFNR-LS (ETL) and c(ETL)
Flame Test Method	IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685
Jacket UV Resistance	UV stabilized
Water Penentration	24 h
Water Penentration Test Method	FOTP-82 / IEC 60794-1 F5

Environmental Test Specifications

Cable Freeze Test Method	IEC 60794-1 F15
Heat Age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-40 °C to +70 °C (-40 °F to +158 °F)
Low High Bend Test Method	FOTP-37 / IEC 60794-1 E11
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 / IEC 60794-1 F1

Packaging and Weights

Cable weight	11.6 kg/km / 7.795 lb/kft

Regulatory Compliance/Certifications

CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
