Brand: CommScope
|
SKU:
373COMOM3LTDLSZH144

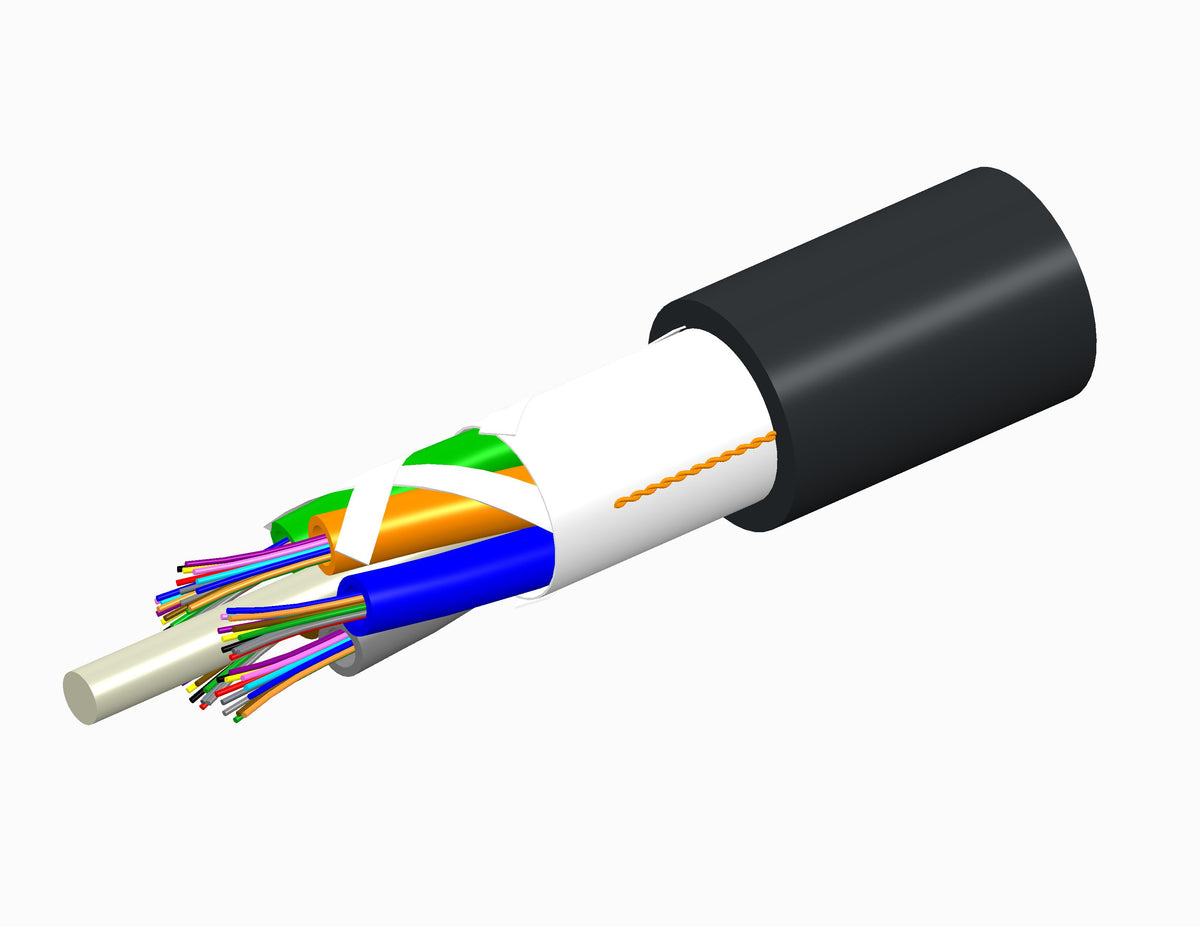

Commscope Z-144-LN-5L-F12BK/25D/E | LazrSPEED Indoor/Outdoor, Single Jacket All-Dielectric, Low Smoke Zero Halogen (LSZH), Gel-Free, Stranded Loose Tube Cable
Regular price
$16.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope Z-144-LN-5L-F12BK/25D/E | LazrSPEED Indoor/Outdoor, Singl...
Regular price
$16.64
Unit price
Brand: CommScope
|
SKU:
373COMOM3LTDLSZH144
Regular price
$16.64
Unit price
Shipping calculated at checkout.
Description
Description
Commscope Z-144-LN-5L-F12BK/25D/E | LazrSPEED Indoor/Outdoor, Single Jacket All-Dielectric, Low Smoke Zero Halogen (LSZH), Gel-Free, Stranded Loose Tube Cable
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
General Specifications
| Cable Type | Stranded loose tube |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 144 |
| Fibers per Subunit, quantity | 12 |
| Jacket Color | Black |
| Subunit Type | Gel-free |
| Subunit, quantity | 12 |
| Total Fiber Count | 144 |
Dimensions
| Buffer Tube/Subunit Diameter | 2.5 mm / 0.098 in |
|---|---|
| Diameter Over Jacket | 17.3 mm / 0.681 in |
Mechanical Specifications
| Minimum Bend Radius, loaded | 259 mm / 10.197 in |
|---|---|
| Minimum Bend Radius, unloaded | 173 mm / 6.811 in |
| Tensile Load, long term, maximum | 800 N / 179.847 lbf |
| Tensile Load, short term, maximum | 2700 N / 606.984 lbf |
| Compression | 22 N/mm / 125.623 lb/in |
| Compression Test Method | FOTP-41 / IEC 60794-1 E3 |
| Flex | 35 cycles |
| Flex Test Method | FOTP-104 / IEC 60794-1 E6 |
| Impact | 3 N-m / 26.552 in lb |
| Impact Test Method | FOTP-25 / IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 / IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 / IEC 60794-1 E7 |
| Vertical Rise, maximum | 300 m / 984.252 ft |
Optical Specifications
| Fiber Type | OM3, LazrSPEED 300 / OM3, LazrSPEED 300 |
|---|
Environmental Specifications
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 / EN 187105 / Telcordia GR-20 / Telcordia GR-409 |
| EN50575 CPR Cable EuroClass Fire Performance | Eca |
| Environmental Space | Aerial, lashed / Buried / Low Smoke Zero Halogen (LSZH) |
| Flame Test Listing | NEC OFN-LS (ETL) and c(ETL) |
| Flame Test Method | CSA FT4 / IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 1202 / IEEE 383 / NES 713 / UL 1685 |
| Jacket UV Resistance | UV stabilized |
| Water Penentration | 24 h |
| Water Penentration Test Method | FOTP-82 / IEC 60794-1 F5 |
Environmental Test Specifications
| Cable Freeze | -2 °C / 28.4 °F |
|---|---|
| Cable Freeze Test Method | FOTP-98 / IEC 60794-1 F15 |
| Drip | 70 °C / 158 °F |
| Drip Test Method | FOTP-81 / IEC 60794-1 E14 |
| Heat Age | -40 °C to +85 °C (-40 °F to +185 °F) |
| Heat Age Test Method | IEC 60794-1 F9 |
| Low High Bend | -30 °C to +60 °C (-22 °F to +140 °F) |
| Low High Bend Test Method | FOTP-37 / IEC 60794-1 E11 |
| Temperature Cycle | -40 °C to +70 °C (-40 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 / IEC 60794-1 F1 |
Packaging and Weights
| Cable weight | 272 kg/km / 182.776 lb/kft |
|---|
Regulatory Compliance/Certifications
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
