Commscope Z008DS5KFSUBK/D | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 8 fiber single-unit
Commscope Z008DS5KFSUBK/D | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 8 fiber single-unit

Commscope Z008DS5KFSUBK/D | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 8 fiber single-unit

Part Number: 373COMOM4TBDLSZH08
0 Review(s)
Write a Review
Availability:
$2.82
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Commscope Z008DS5KFSUBK/D | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 8 fiber single-unit



https://www.alldataresource.com/assets/images_commscope/representative_image.jpg

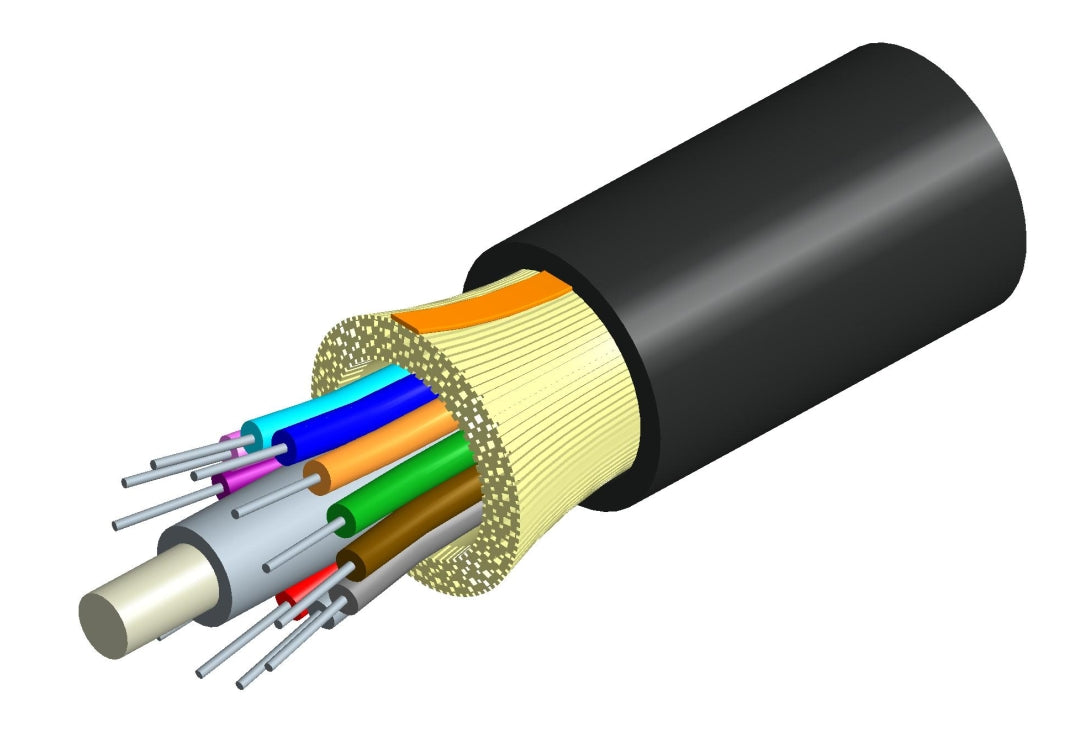

Representative Image

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / EMEA / Latin America / North America
PortfolioCommScope
Product TypeFiber indoor/outdoor cable



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Cable TypeDistribution
Construction TypeNon-armored
Fiber Type, quantity8
Jacket ColorBlack
Total Fiber Count8



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Diameter Over Jacket6.3 mm / 0.248 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Minimum Bend Radius, loaded94 mm / 3.701 in
Minimum Bend Radius, unloaded63 mm / 2.48 in
Tensile Load, long term, maximum400 N / 89.924 lbf
Tensile Load, short term, maximum1335 N / 300.12 lbf
Compression22 N/mm / 125.623 lb/in
Compression Test MethodFOTP-41 / IEC 60794-1 E3
Flex100 cycles
Flex Test MethodFOTP-104 / IEC 60794-1 E6
Impact5.88 N-m / 52.042 in lb
Impact Test MethodFOTP-25 / IEC 60794-1 E4
StrainSee long and short term tensile loads
Strain Test MethodFOTP-33 / IEC 60794-1 E1
Twist10 cycles
Twist Test MethodFOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum500 m / 1640.42 ft



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Optical Specifications

Fiber TypeOM4, LazrSPEED 550 / OM4, LazrSPEED 550



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification StandardsANSI/ICEA S-104-696 / EN 187105 / Telcordia GR-20 (water penetration) / Telcordia GR-409
EN50575 CPR Cable EuroClass Fire PerformanceDca
EN50575 CPR Cable EuroClass Smoke Ratings1a
EN50575 CPR Cable EuroClass Droplets Ratingd1
EN50575 CPR Cable EuroClass Acidity Ratinga2
Environmental SpaceLow Smoke Zero Halogen (LSZH) / Riser
Flame Test ListingNEC OFNR-LS (ETL) and c(ETL)
Flame Test MethodIEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685
Jacket UV ResistanceUV stabilized
Water Penentration24 h
Water Penentration Test MethodFOTP-82 / IEC 60794-1 F5



https://www.alldataresource.com/assets/images_commscope/environmental_test_specifications.jpg

Environmental Test Specifications

Cable Freeze Test MethodIEC 60794-1 F15
Heat Age-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test MethodIEC 60794-1 F9
Low High Bend-40 °C to +70 °C (-40 °F to +158 °F)
Low High Bend Test MethodFOTP-37 / IEC 60794-1 E11
Temperature Cycle-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test MethodFOTP-3 / IEC 60794-1 F1



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Cable weight35 kg/km / 23.519 lb/kft



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

CENELECEN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Danish)Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Dutch)Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (French)Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (German)Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Italian)Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Spanish)Click to View
CommScope Fiber Optic Single-Unit Distribution Cable Installation InstructionsClick to View
