Commscope Z024DS6FFSUBK/D | OptiSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 24 fiber single-unit
Commscope Z024DS6FFSUBK/D | OptiSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 24 fiber single-unit
Commscope Z024DS6FFSUBK/D | OptiSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 24 fiber single-unit
Part Number:
373COMOM1TBDLSZH24
0 Review(s)
0
0
5
Write a Review
Add to Wish List
Email a friend
Availability:
Your Price:
$4.28
Put me on the Waiting List
Quantity
-
+
Add to Cart
Have a question or need a quote?
Low prices.
Price match guarantee
In-House Experts.
We know our products
Easy Returns.
Quick & Hassle Free
Superior Selection.
Extensive product catalog
Description
Commscope Z024DS6FFSUBK/D | OptiSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 24 fiber single-unit

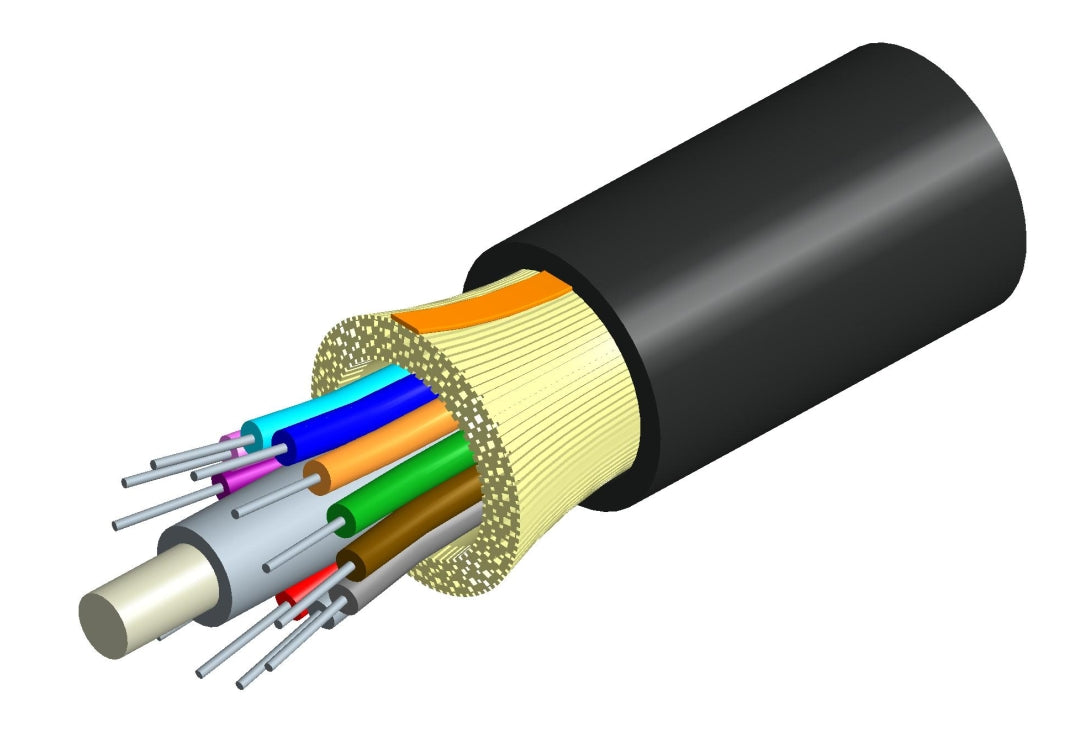

Representative Image
Click on image to enlarge.
Product Classification
Regional Availability
Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio
CommScope
Product Type
Fiber indoor/outdoor cable
General Specifications
Cable Type
Distribution
Construction Type
Non-armored
Fiber Type, quantity
24
Jacket Color
Black
Total Fiber Count
24
Dimensions
Diameter Over Jacket
8.7 mm / 0.343 in
Mechanical Specifications
Minimum Bend Radius, loaded
130 mm / 5.118 in
Minimum Bend Radius, unloaded
87 mm / 3.425 in
Tensile Load, long term, maximum
400 N / 89.924 lbf
Tensile Load, short term, maximum
1335 N / 300.12 lbf
Compression
22 N/mm / 125.623 lb/in
Compression Test Method
FOTP-41 / IEC 60794-1 E3
Flex
100 cycles
Flex Test Method
FOTP-104 / IEC 60794-1 E6
Impact
5.88 N-m / 52.042 in lb
Impact Test Method
FOTP-25 / IEC 60794-1 E4
Strain
See long and short term tensile loads
Strain Test Method
FOTP-33 / IEC 60794-1 E1
Twist
10 cycles
Twist Test Method
FOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum
500 m / 1640.42 ft
Optical Specifications
Fiber Type
OM1, OptiSPEED / OM1, OptiSPEED
Environmental Specifications
Installation temperature
-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature
-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards
ANSI/ICEA S-104-696 / EN 187105 / Telcordia GR-20 (water penetration) / Telcordia GR-409
EN50575 CPR Cable EuroClass Fire Performance
Dca
EN50575 CPR Cable EuroClass Smoke Rating
s1a
EN50575 CPR Cable EuroClass Droplets Rating
d1
EN50575 CPR Cable EuroClass Acidity Rating
a2
Environmental Space
Low Smoke Zero Halogen (LSZH) / Riser
Flame Test Listing
NEC OFNR-LS (ETL) and c(ETL)
Flame Test Method
IEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685
Jacket UV Resistance
UV stabilized
Water Penentration
24 h
Water Penentration Test Method
FOTP-82 / IEC 60794-1 F5
Environmental Test Specifications
Cable Freeze Test Method
IEC 60794-1 F15
Heat Age
-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method
IEC 60794-1 F9
Low High Bend
-40 °C to +70 °C (-40 °F to +158 °F)
Low High Bend Test Method
FOTP-37 / IEC 60794-1 E11
Temperature Cycle
-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method
FOTP-3 / IEC 60794-1 F1
Packaging and Weights
Cable weight
67 kg/km / 45.022 lb/kft
Regulatory Compliance/Certifications
CENELEC
EN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015
Designed, manufactured and/or distributed under this quality management system
ROHS
Compliant
CHINA-ROHS
Below maximum concentration value
REACH-SVHC
Compliant as per SVHC revision on www.commscope.com/ProductCompliance
Documents and Downloads
Revit BIM Models
Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Danish)
Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Dutch)
Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (French)
Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (German)
Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Italian)
Click to View
EN50575 DoP EuroClass Dca s1a d1 a2 (Spanish)
Click to View
CommScope Fiber Optic Single-Unit Distribution Cable Installation Instructions
Click to View
