Commscope Z036DS5LFMUBK/C | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 36 fiber multi-unit with 12 fiber subunits



https://www.alldataresource.com/assets/images_commscope/representative_image.jpg

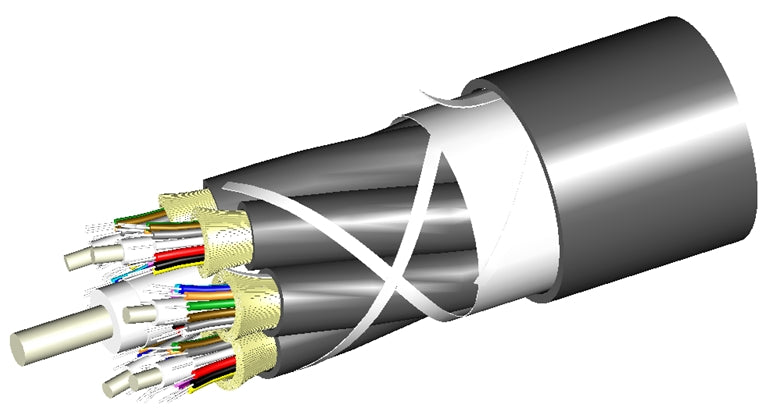

Representative Image

Click on image to enlarge.Click on image to enlarge.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Product Classification

Regional AvailabilityAsia / Australia/New Zealand / EMEA / Latin America / North America
PortfolioCommScope
Product TypeFiber indoor/outdoor cable



https://www.alldataresource.com/assets/images_commscope/specs.jpg

General Specifications

Cable TypeDistribution
Construction TypeNon-armored
Fiber Type, quantity36
Fibers per Subunit, quantity12
Jacket ColorBlack
Subunit TypeGel-free
Subunit, quantity3
Total Fiber Count36



https://www.alldataresource.com/assets/images_commscope/dimensions.jpg

Dimensions

Buffer Tube/Subunit Diameter7.2 mm / 0.283 in
Diameter Over Jacket17.1 mm / 0.673 in



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Mechanical Specifications

Minimum Bend Radius, loaded256 mm / 10.079 in
Minimum Bend Radius, unloaded171 mm / 6.732 in
Tensile Load, long term, maximum1068 N / 240.096 lbf
Tensile Load, short term, maximum3560 N / 800.32 lbf
Compression22 N/mm / 125.623 lb/in
Compression Test MethodFOTP-41 / IEC 60794-1 E3
Flex100 cycles
Flex Test MethodFOTP-104 / IEC 60794-1 E6
Impact5.88 N-m / 52.042 in lb
Impact Test MethodFOTP-25 / IEC 60794-1 E4
StrainSee long and short term tensile loads
Strain Test MethodFOTP-33 / IEC 60794-1 E1
Twist10 cycles
Twist Test MethodFOTP-85 / IEC 60794-1 E7
Vertical Rise, maximum451 m / 1479.659 ft



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Optical Specifications

Fiber TypeOM3, LazrSPEED 300 / OM3, LazrSPEED 300



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental Specifications

Installation temperature-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification StandardsANSI/ICEA S-104-696 / EN 187105 / Telcordia GR-20 (water penetration) / Telcordia GR-409
EN50575 CPR Cable EuroClass Fire PerformanceCca
EN50575 CPR Cable EuroClass Smoke Ratings1b
EN50575 CPR Cable EuroClass Droplets Ratingd1
EN50575 CPR Cable EuroClass Acidity Ratinga2
Environmental SpaceLow Smoke Zero Halogen (LSZH) / Riser
Flame Test ListingNEC OFNR-LS (ETL) and c(ETL)
Flame Test MethodIEC 60332-3 / IEC 60754-2 / IEC 61034-2 / IEEE 383 / UL 1666 / UL 1685
Jacket UV ResistanceUV stabilized
Water Penentration24 h
Water Penentration Test MethodFOTP-82 / IEC 60794-1 F5



https://www.alldataresource.com/assets/images_commscope/environmental_test_specifications.jpg

Environmental Test Specifications

Cable Freeze Test MethodIEC 60794-1 F15
Heat Age-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test MethodIEC 60794-1 F9
Low High Bend-40 °C to +70 °C (-40 °F to +158 °F)
Low High Bend Test MethodFOTP-37 / IEC 60794-1 E11
Temperature Cycle-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test MethodFOTP-3 / IEC 60794-1 F1



https://www.alldataresource.com/assets/images_commscope/packaging_weights.jpg

Packaging and Weights

Cable weight242 kg/km / 162.616 lb/kft



https://www.alldataresource.com/assets/images_commscope/regulatorycompliance.jpg

Regulatory Compliance/Certifications

CENELECEN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant
CHINA-ROHSBelow maximum concentration value
REACH-SVHCCompliant as per SVHC revision on www.commscope.com/ProductCompliance



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Revit BIM ModelsClick to View
EN50575 DoP EuroClass Cca s1b d1 a2 (Danish)Click to View
EN50575 DoP EuroClass Cca s1b d1 a2 (Dutch)Click to View
EN50575 DoP EuroClass Cca s1b d1 a2 (French)Click to View
EN50575 DoP EuroClass Cca s1b d1 a2 (German)Click to View
EN50575 DoP EuroClass Cca s1b d1 a2 (Italian)Click to View
EN50575 DoP EuroClass Cca s1b d1 a2 (Spanish)Click to View
Statement of Compliance RoHS/REACHClick to View
