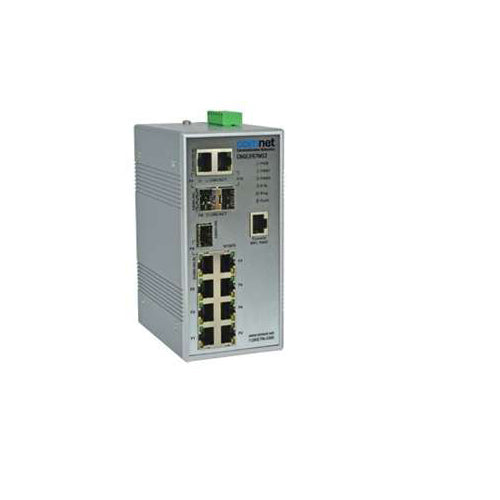

Comnet CNGE3FE7MS3 | Environmentally Hardened Managed Ethernet Switch with (7) 10/100TX + (3) Configurable 10/100/1000TX/100/1000FX Ports

The ComNet CNGE3FE7MS2 Managed EthernetSwitch provides robust transmission of (7) 10/100BASE-TX and (3) 10/100/1000TX or 100/1000FX comboports, of gigabit Ethernet data.

Unlike most Ethernet switches, these environmentally hardened units are designed for direct deployment in difficult out-of-plant or roadside operating environments, and are availablefor use with either conventional CAT-5e copper oroptical transmission media.

Diverse media selection allows for easy implementation of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and mesh network system architectures.

The 7 electrical ports support the 10/100 Mbps Ethernet IEEE802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation.

3 ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single-mode optical fiber, selected by optional SFP modules.

These network managed layer 2 switches are optically (100/1000 BASE-FX) an d electrically compatible with any IEEE 802.3 compliant Ethernet devices.

Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required.The CNGE3FE7MS2 incorporates LED indicators for monitoring the operating status of the managed switch and network.

These units are DIN-rail or wall-mountable.
