Corning SOC-ST-900-OM4 | FuseLite Connector, ST compatible, 900 µm ...
Regular price
$20.91
Unit price
Brand: Corning
|
SKU:
984185
Regular price
$20.91
Unit price
Description
Description

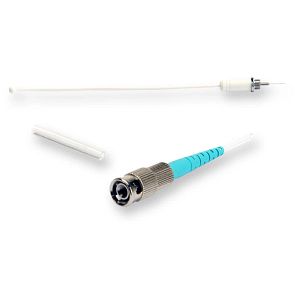

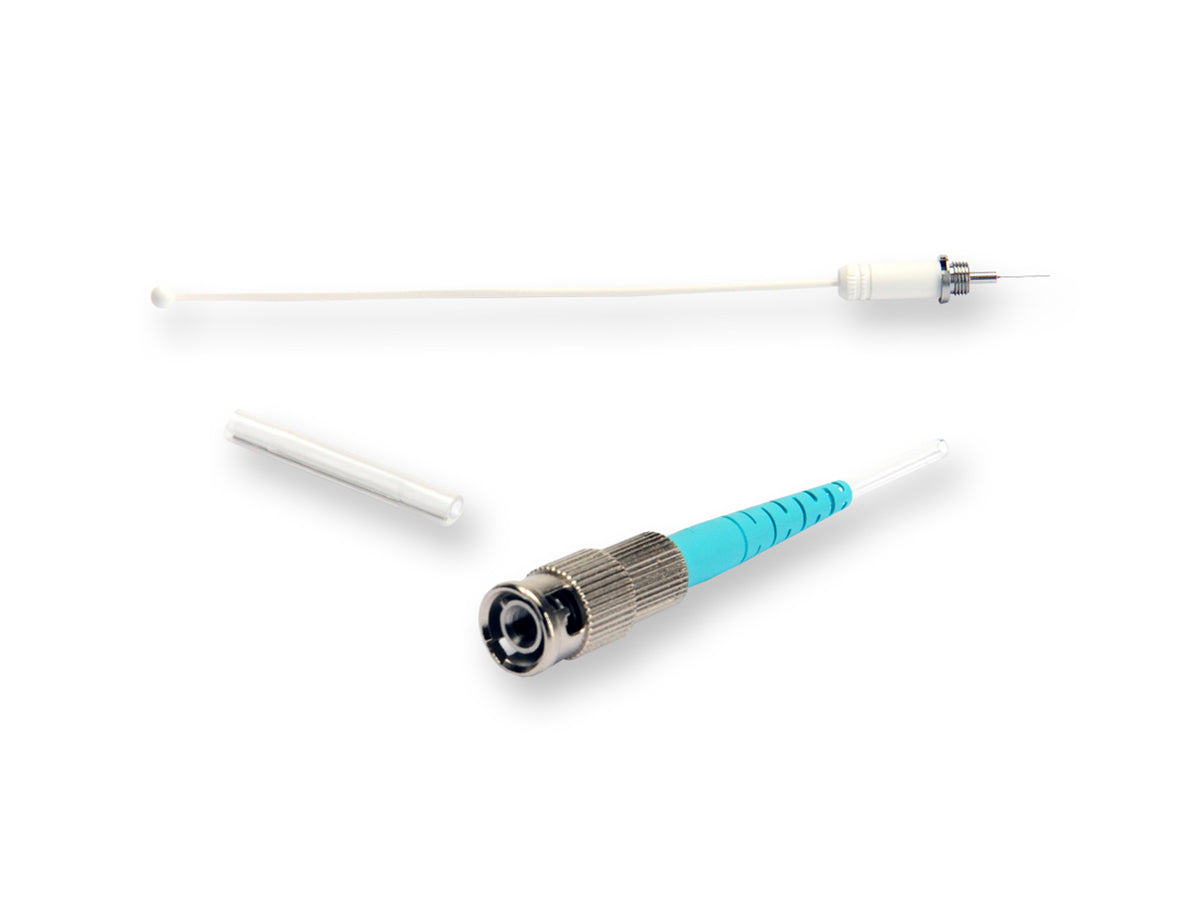

Corning SOC-ST-900-OM4 | FuseLite Connector, ST compatible, 900 µm Tight-Buffered 50 µm multimode (OM2/3/4)
Corning - SOC-ST-900-OM4 - Features
- Broad operating temperature range (-40°C to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fusion splice connectivity
- Ideal for reflectance-sensitive applications
- Splice protection within connector body
- No splice trays required
- Broad operating temperature range (-40;C to +75;C)
- Utility and flexibility Factory-polished end face
- Consistent optical performance Fusion splice connectivity
- Ideal for reflectance-sensitive applications Splice protection within connector body
- No sice trays required
Specifications
Specifications
Corning - SOC-ST-900-OM4 - Product Categories
- Shop by Manufacturer/Corning
- Security
- Intrusion Detection
- Control Panels
- Fiber Optic Connectivity
- Connectors
Corning - SOC-ST-900-OM4 - Specifications
| General Specifications | - |
|---|---|
| Product Number | SOC-ST-900-OM4 |
| EAN Code | 4056418150253 |
| Fiber Category | 50 µm MM (OM2/OM3/OM4) |
| Product Type | Field-Installable Connectors |
| Compatibility | ST compatible |
| Corning Logo | Yes |
| Keyed (security) | No |
| Technology | Fuse-On |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Telcordia GR-326-CORE and GR-1081-CORE compliant |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Design - Connector | - |
| Connector Type | ST compatible |
| Housing Color | Aqua |
| Boot Color | Aqua |
| Ferrule Material | Composite |
| Optical Specifications - Connector | - |
| Polish | PC |
| Insertion Loss, Max. | 0.25 dB |
| Reflectance | < -30 dB |
| Insertion Loss, Typical | 0.1 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Units per Delivery | 1/1" |
| ECCN | EAR99 |
| Country of Origin | JP - Japan |
| Color Family | Blue |
| Packaging | 1 per Package |
| Accessory Type | Mechanical Splice |
| Material | Composite |
| Type | Field-Installable |
| Color | Aqua |
| Technology | Fuse-On |
| Connector Type | ST |
| Fiber Category | Multimode - OM2/OM3/OM4 |
