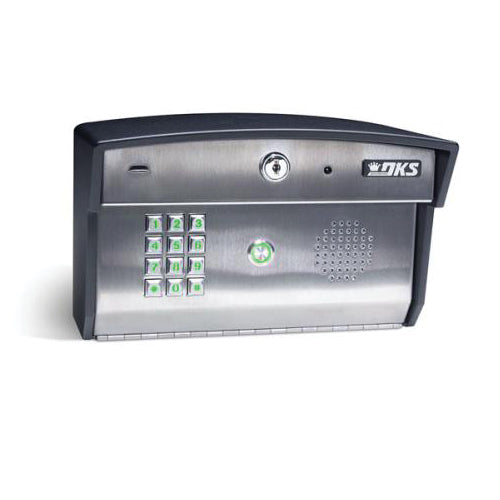

Door King 1812-096 | Telephone Entry System, Full Duplex, Surface Mount Curved, 16 Volt Ac, 20 Va, 10.88" W X 6" D X 7.38" H, With 500 Event Transaction Buffer

1812 Access Plus Curved Surface Mount Telephone Entry System, Stainless Steel Faceplate, Black Housing, Full Duplex voice communication, Up to 27 phone numbers (23 with intercom), 100 device codes (card, keypad, transmitter), 500 event history buffer, 10 temporary access codes, Two relays allow for control of both a vehicular gate and a pedestrian gate, Add 6 additional entry points (RS485) using card, keypad, or proxy RF devices, Relay board available which allows use of existing 26-bit wiegand devices, Holiday schedule, Four (4) hold open time zones, Schedule un-lock / lock times, IP Addressable, Program Via Your PC, Email notifications.

Door King - 1812-096 - Features

• Ip Addressable-Program From Your Pc Via Lan/Wan Or An Internet Connection Or Via Built-In Modem
• Access Plus Account Manager Programming Software Included
• Add Upto Six (6) Card Readers, Keypads Or Rf Receivers (Rs-485)
• 100 Card/Transmitter/Keypad Codes(50 With Phone Numbers
• 50 Access Codes Only)
• Upto 30 Holidays Can Be Added To Access And Hold Open Time Zones
• Control Access Points From Your Pc
• Schedule Lock And Unlock Times, Lock Or Unlock An Access Point With The Click Of Your Mouse
• 10 Temporarycess Codes With Start And End Dates
• 500 Event Transaction Buffer
• Email Notification Of Events Of Your Choice
• Internet Connection Required
• Call Waiting
• Call Forwarding With Time Zone Restrictions
• Unique Double Ring
• Built-In Clock/Calendar
• Do-Not-D Feature
• Four "Hold Open" Time Zones
• Answer Machine Bypass Feature
• 50 5-Digit Entry Codes With Time Zone Restrictions On Some Codes
• 10 Temporary Entry Codes With Start And End Dates
• Intercom Mode For Use With Pbx And Ksu Phone Systems
• Camera Ready

Door King - 1812-096 - Product Categories

• Shop by Manufacturer/Door King Inc.
• Security
• Access Control
• Panels

Door King - 1812-096 - Specifications

Sales Category	Electric System Controller
UNSPSC Code	43211700
Tech Info	Ul 294, Fcc, Etl, Doc
Manufacturer	Doorking
Category	Tes / Intercom
Sub Category	Telephone Entry

Door King - 1812-096 - Package Information

Weight

15

Door King - 1812-096 - Documents and Downloads

Door King 1812-096 Specification Sheet	Click to View
Door King 1812-096 Manual	Click to View
Door King 1812-096 Specification Sheet 1	Click to View
