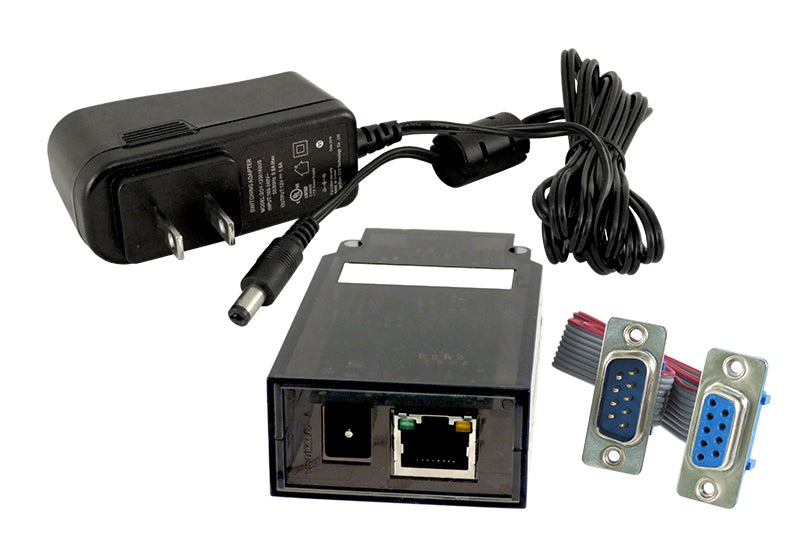

ELK Products Inc IP232 | Serial to Ethernet Converter
Description
Description
The ELK-IP232 is an Ethernet to RS-232 Serial Port Bridge. It may be used to connect any standard serial communications device such as a PC, an audio/video distribution system, etc., to an Ethernet network. It allows bi-directional communication between the two. It operates as both a network server and a client, which means it is able to both initiate and accept network connections. Once a network connection is made, the remote networked device or computer is virtually connected to the serial device on the other side of the Bridge. Both the network device and the serial device can send and receive messages to and from each other. Up to twelve network devices may be connected simultaneously. Data sent from any one of them is bridged to the serial port. Data received on the serial side is transmitted to all connected network devices. The bridge can send and receive both UDP and TCP packets.
ELK Products Inc - IP232 - Features
- Supports both UDP and TCP protocols
- Allows up to twelve (12) simultaneous TCP-IP network connections
- Up to twelve (12) "Rules" may be programmed to make outgoing connections
- Outgoing connections may be initiated upon power up or when serial activity is detected. They may remain connected indefinitely or for a set time period.
- Selectable baud rate from 300 to 115200 baud
- Supports software handshaking (XON/XOFF) and hardware handshaking (RTS/CTS)
Specifications
Specifications
ELK Products Inc - IP232 - Specifications
| Operating Voltage | 12 Volts D.C. from ELK-P1216 Plug-in Power Supply ** |
|---|---|
| Current Draw | approx. 135 mA |
| Dimensions | 3.85. L x 1.7. W x 0.93. D |
Documents and Downloads
Documents and Downloads
