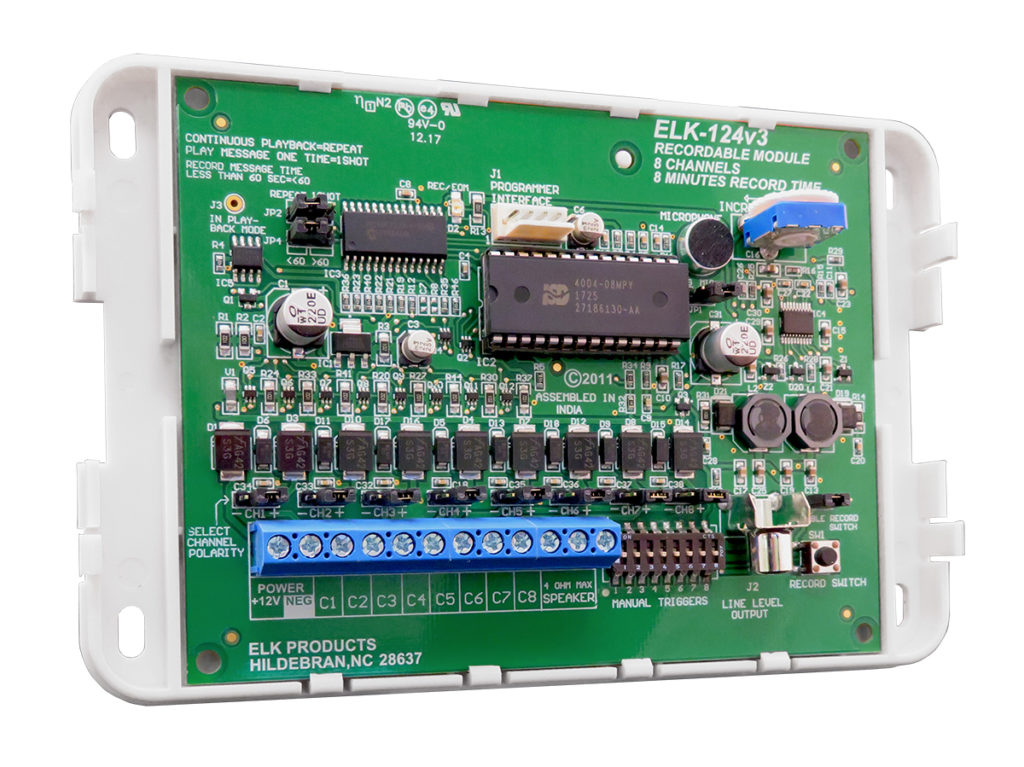

Elk Products Inc. ELK-124 | 8-Channel Recordable Voice Driver

Elk Products Inc. - ELK-124 - Features

• Eight Channels of Recordable Voice/Music
• Maximum record time is 8 minutes which may be divided between the number of channels required
• Recordings are stored in non-volatile memory
• Each channel selectable for "+" or "-" triggering
• Each channel will acpt a momentary trigger
• Continuous playback or "One Shot" settings
• Built-in condenser microphone for recording
• Adjustable speaker volume and current draw
• Powerful 24 watt audio amplifier for Speakers
• Line Level Output for Amplifiers and Paging SystemC sound card interface connector
• Mounted inside ELK-PB1 plastic enclosure
• Lifetime Limited Warranty
• Each channel will accept a momentary trigger
• Line Level Output for Amplifiers and Paging Systems
• PC sound card interface connector
• Operating Voltage 11 to 14 Volts DC
• Current Draw 2 to 2 Amps, (depends on volume setting and speaker loading)
• Sound Level 122 db @ 1 meter, 14 vdc
• Max. Speaker Loading 4 Ohms
• Max. Message Length 1 minute per channel or 8 minutes for a combined single channel
• Enclosure Size 6.5" W x 4.375"H x 2"D, White Plastic
• Size 3" x 5" x 1.25" (76 x 127 x 32mm)
