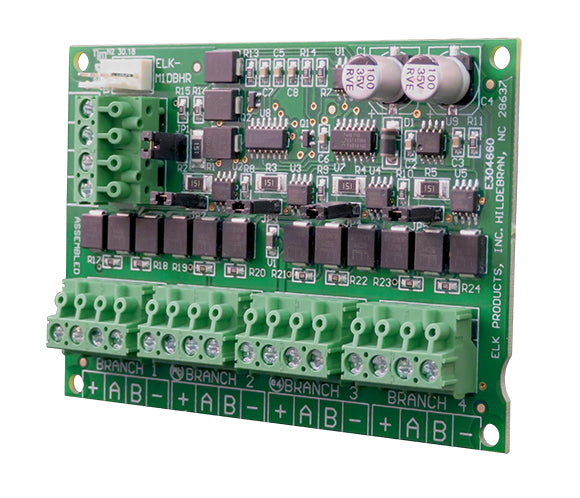

Elk Products Inc. ELK-M1DBHR | M1 Data Bus Hub For Retrofit

Elk Products Inc. - ELK-M1DBHR - Features

• Splits The Controls’ RS-485 Data Bus Output Into 4 Managed Branches
• Each Managed Branch Can Have 2 Parallel Home Run Cables (Total Of 8 Home Runs)
• EOL Termination Of Each Branch Insures Proper Operation And Supervision
• Works With Std. 4 Conductor HomeRun Wire
• An Additional Unit May Be Connected In Parallel To The Control For Expanding Total Capacity
• Includes Mounting Rails for ELK-SWB Boxes
• Splits The Controls' RS-485 Data Bus Output Into 4 Managed Branches
• Works With Std. 4 Conductor Home Run Wire
• Inputs Elevator Screw Terminals
• Output Elevator Screw Terminals, 4 Position
• Circuit Board Dimensions 4.9" x 2.75"
