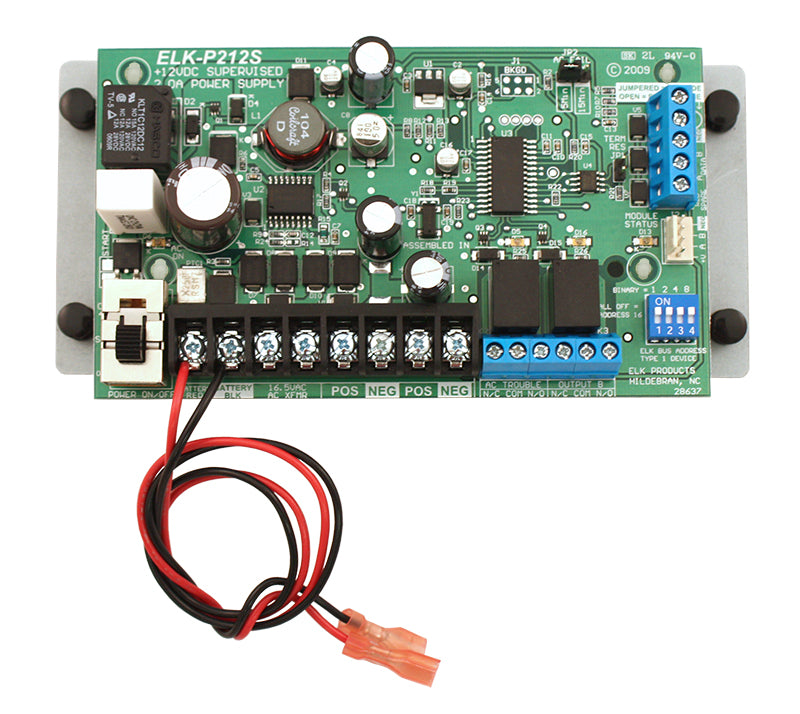

Elk Products Inc. ELK-P212S | Supervised Remote Power Supply

Elk Products Inc. - ELK-P212S - Features

• Regulated 12VDC Output with up to 2 Amps of current
• Energy Efficient ESMT - Elk Switch Mode Technology ensures low idle power with maximum output headroom
• Automatic output over-current protection (PTC)
• Master AC and Battery ON / OFF Power Switch
• Visu AC Power Indicator
• Innovative EBT - Elk Battery Technology circuit provides maximum battery life
• Controlled charge ramp and maintenance algorithm
• Low Battery cut-off protects battery from deep discharge
• M1 Control allows
• Remote power reset ofwered peripherals
• Data-bus supervision of AC and Battery status
• Stand-alone flexibility
• Two (2) sets of DC outputs
• One (1) on-board relay to supervise battery status
• One (1) on-board relay to supervise AC status
• Visual AC Power Indicator
• Remote power reset of powered peripherals
• AC Input 16.5VAC, 45VA (ELK-TRG1640 or equiv.)
• DC Output Voltage 13.8 Volts D.C. +/- 5%
• Current Rating 2.0 Amps
• Wattage 30 Watts
• DC Output Protection Auto Resetting PTC
• Rechargeable Battery Size Max. 12 Ah
• Low Battery Cutoff Threshold ~10 Volts.
• Load Regulation + / - 2%
