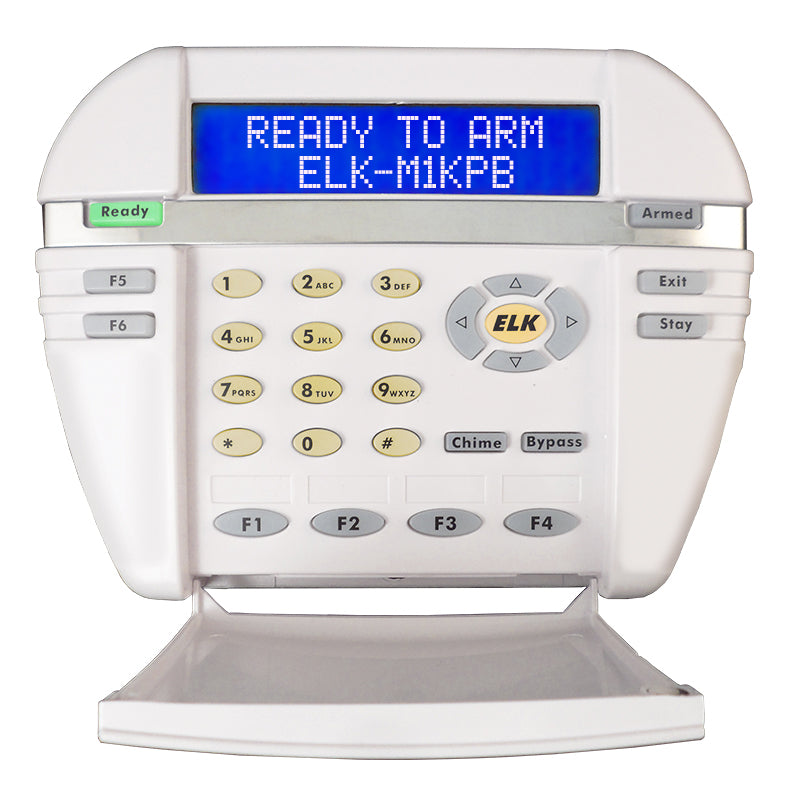

Elk Products Inc. M1KPB | LCD Keypad for M1 Controls (Blue LCD Display)

Elk Products Inc. - M1KPB - Features

• Backlit, Large Character LCD Display, 16 x 2 lines
• Blue LCD Display
• Six (6) programmable function keys
• Unique Menu Navigation/Direction keys
• Adjustable volume for tones/chime
• Accepts Plug-in Proximity Reader (ELK-M1PR) or "External" 26 bit Wiegand P Reader
• Built-in Temperature Sensor
• Input for 1 Supervised Zone
• One Programmable "Switched Positive" Voltage Output
• Exit, Stay, Chime, and Bypass Keys
• Programmable display of time, date, & temperature
• Displays system diagnostics and settings
• Accepts Plug-in Proximity Reader (ELK-M1PR) or ?xternal" 26 bit Wiegand Prox Reader
• One Programmable ?witched Positive" Voltage Output
• Input Connection 6 Pin Plug-in "Flying Lead" Connector Included
• Operating Voltage 13.8 Volts DC
• Color Glacier White
• Operating Voltage 3.5" x 2.75
• Current Draw 40 - 50 mA Idle (low back light level, sounder silent)
• Size 6.875" x 5.25" x 1.375"
