Brand: Encore Wire
|
SKU:
C1326-03

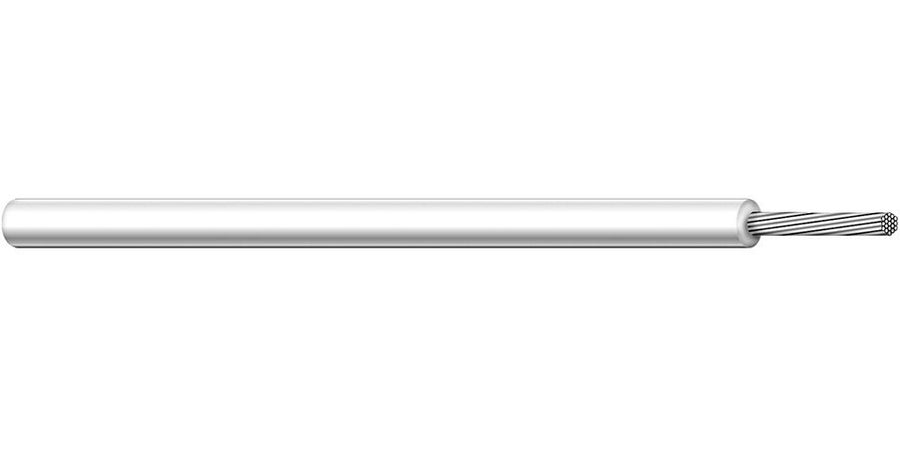

Encore Wire C1326.46.03 | Hook-Up Wire, 20 AWG, 1 Conductor, 41 x 36 Strand, Annealed Tinned Copper Conductor, PVC Insulation
Regular price
$183.07
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C1326.46.03 | Hook-Up Wire, 20 AWG, 1 Conductor, 41 x 3...
Regular price
$183.07
Unit price
Brand: Encore Wire
|
SKU:
C1326-03
Regular price
$183.07
Unit price
Description
Description
Encore Wire C1326.46.03 | Hook-Up Wire, 20 AWG, 1 Conductor, 41 x 36 Strand, Annealed Tinned Copper Conductor, PVC Insulation
Hook-Up Wire, Conductor Size: 20 AWG, Conductor Count: 1 Conductor, Conductor Stranding: 41 x 36 Strand, Conductor Material: Annealed Tinned Copper, Insulation Material: PVC, Insulation Thickness: 0.04 in., Shield Type: Unshielded, Jacket Material: PVC, Jacket Color: Red, Voltage: 1500 V, Temperature Rating: -30 to 105 C, Outside Diameter: 0.125 in.
Specifications
Specifications
Encore Wire - C1326.46.03 - Applications
- Used in test equipment where dependable internal wiring and electrical connections are needed.
- Works well in oscillators requiring reliable internal wiring connections.
Encore Wire - C1326.46.03 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C1326.46.03 |
| Conductor Count | 1 Conductor |
| Item Description | Hook-Up Wire, 20 AWG, 1 Conductor, 41 x 36 Strand, Annealed Tinned Copper Conductor, PVC Insulation |
| Conductor Material | Tinned Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 41 Strands Per Conductor |
| Insulation Material | Pvc |
| Insulation Thickness | 0.04 In. |
| Jacket Color | Red |
| Jacket Material | Pvc |
| Outside Diameter | 0.125 In. |
| Product Type | Hook-Up Wire |
| Shield Type | Unshielded |
| Temperature Rating | -30° To 105°C (-22° To 221°F) |
| Voltage | 1500 V |
