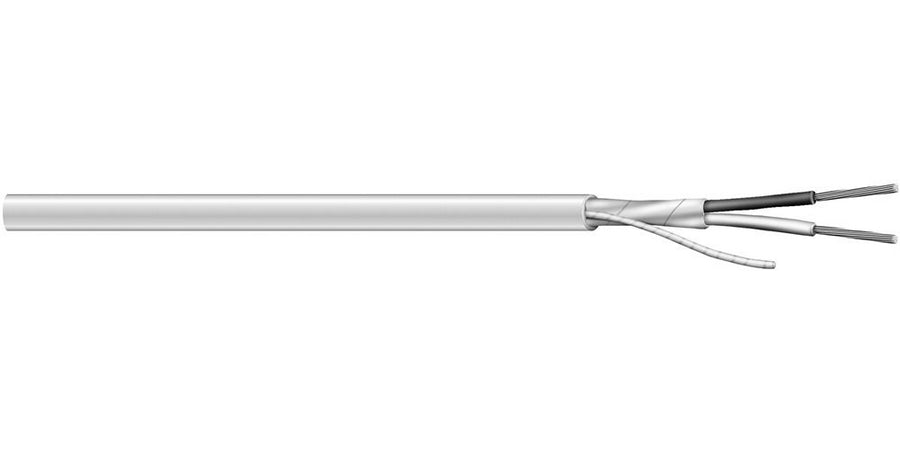

Encore Wire E2003S.41.10 | Multi-Conductor Cable, White, 3 Conductor, Bare Copper, 7/30, Solid/Stranded, Semi-Rigid PVC, Gray
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire E2003S.41.10 | Multi-Conductor Cable, White, 3 Conducto...
Description
Description
The sound and security industry in the united states has grown from a simple and unsophisticated business, begun some 45 years ago, to one which has developed technology to the degree that specialized wires and cables are now much in demand. No longer are the security and sound industries characterized by large electromechanical relays and large contactors; today these circuits incorporate the latest in microprocessors and solid state devices to not only improve functionality but also to guarantee performance.
Specifications
Specifications
Encore Wire - E2003S.41.10 - Applications
- Use it for signal and control wiring where a multi-conductor construction supports organized routing and termination.
- Choose it for sensitive installations where foil shielding with an overall shield & drain helps reduce interference.
- Install it in vertical runs for riser applications where a Riser fire rating and NEC rated UL Listed Art 800 Riser compliance are required.
Encore Wire - E2003S.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | E2003S.41.10 |
| Approval Listings | Rohs, Ul |
| Item Description | Multi-Conductor Cable, White, 3 Conductor, Bare Copper, 7/30, Solid/Stranded, Semi-Rigid PVC, Gray |
| Color | White |
| Conductor Count | 3 |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Solid/Stranded |
| Insulation Material | Srpvc-Semi-Rigid Polyvinyl Chloride |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Ul |
| Nominal O.D. | 0.141 In. |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminized Polyester |
| Shield Type | Overall Foil |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
