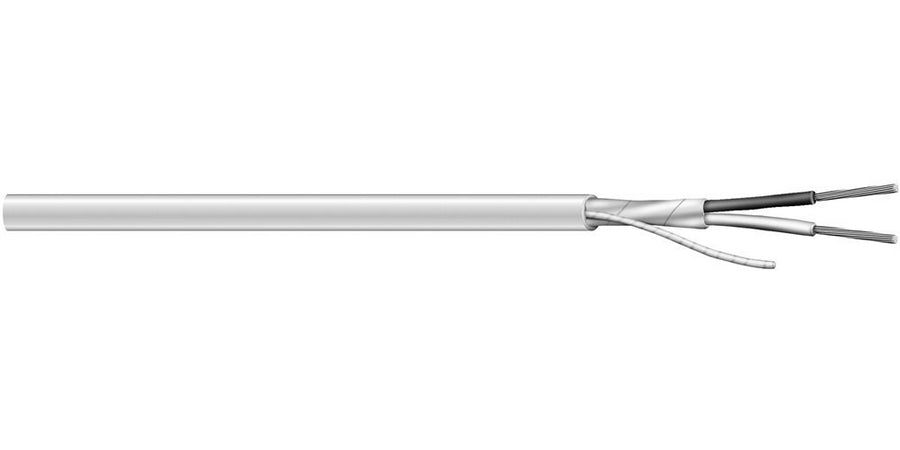

Encore Wire E2004S.41.10 | 22 AWG 4-Conductor Stranded Bare Copper Cable, Foil Shield, PVC Jacket, Gray
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire E2004S.41.10 | 22 AWG 4-Conductor Stranded Bare Copper ...
Description
Description
The sound and security industry in the united states has grown from a simple and unsophisticated business, begun some 45 years ago, to one which has developed technology to the degree that specialized wires and cables are now much in demand. No longer are the security and sound industries characterized by large electromechanical relays and large contactors; today these circuits incorporate the latest in microprocessors and solid state devices to not only improve functionality but also to guarantee performance.
Specifications
Specifications
Encore Wire - E2004S.41.10 - Applications
- Designed for power-limited control circuits where signal integrity matters.
- Ideal for intercom system wiring where interference reduction is important.
- Commonly used for security system wiring in power-limited control circuits.
- Suitable for audio system wiring where shielding helps reduce interference.
- Well-suited for background music wiring in installations that benefit from an overall shield & drain.
Encore Wire - E2004S.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | E2004S.41.10 |
| Approval Listings | Rohs, Ul |
| Item Description | 22 AWG 4-Conductor Stranded Bare Copper Cable, Foil Shield, PVC Jacket, Gray |
| Color | Green |
| Conductor Count | 4 |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Solid/Stranded |
| Insulation Material | Srpvc-Semi-Rigid Polyvinyl Chloride |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Ul |
| Nominal O.D. | 0.147 In. |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminized Polyester |
| Shield Type | Overall Foil |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
