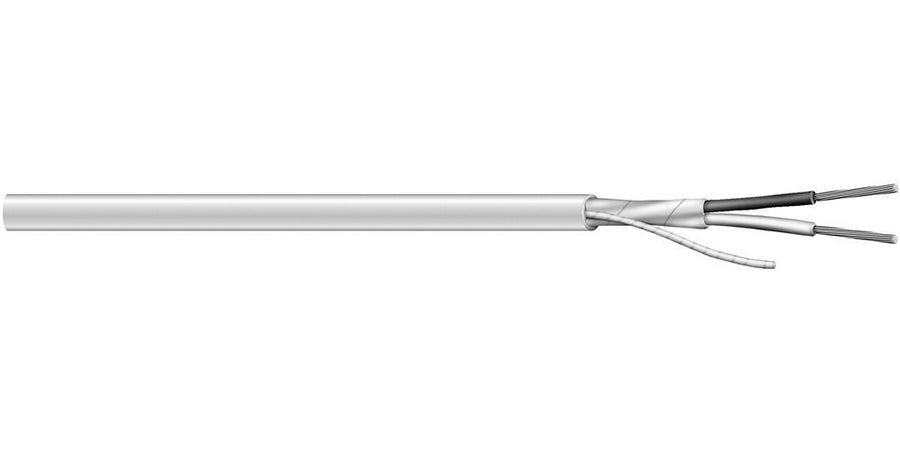

Encore Wire E2033S.41.10 | Multi-Conductor Cable, White, 3 Conductor, Bare Copper, Solid/Stranded, Semi-Rigid PVC, Gray
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire E2033S.41.10 | Multi-Conductor Cable, White, 3 Conducto...
Description
Description
The sound and security industry in the united states has grown from a simple and unsophisticated business, begun some 45 years ago, to one which has developed technology to the degree that specialized wires and cables are now much in demand. No longer are the security and sound industries characterized by large electromechanical relays and large contactors; today these circuits incorporate the latest in microprocessors and solid state devices to not only improve functionality but also to guarantee performance.
Specifications
Specifications
Encore Wire - E2033S.41.10 - Applications
- Supports power-limited control circuits where controlled signaling and reliable connections are needed.
- Commonly installed for wiring intercom systems in building and facility communication setups.
- Security systems use it for consistent signal wiring.
- Audio systems can be wired with it in low-voltage signal wiring installations.
- Background music systems apply it to route low-voltage signal wiring between components.
Encore Wire - E2033S.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | E2033S.41.10 |
| Approval Listings | Rohs, Ul |
| Item Description | Multi-Conductor Cable, White, 3 Conductor, Bare Copper, Solid/Stranded, Semi-Rigid PVC, Gray |
| Color | White |
| Conductor Count | 3 |
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Solid/Stranded |
| Insulation Material | Srpvc-Semi-Rigid Polyvinyl Chloride |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Ul |
| Nominal O.D. | 0.168 In. |
| Product Type | Multi-Conductor Cable |
| Shield Material | Aluminized Polyester |
| Shield Type | Overall Foil |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | -20 To 75 C |
| Voltage | 300 V |
