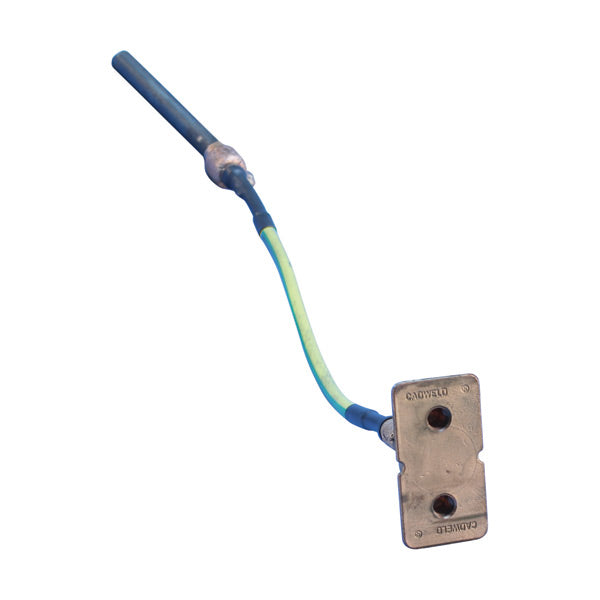

Erico B1622QC701 - GROUNDING - Earthbridge B162, Two Stud, Cable to...
Regular price
$279.51
Unit price
Brand: Erico
|
SKU:
9826853
Regular price
$279.51
Unit price
Description
Description
Earthbridges are assemblies made from a high-quality conductive earthpoint (connecting terminal) and various types of conductors. The nVent ERICO Cadweld exothermic connection process is used to combine them together, forming a highly corrosion resistant and long-lasting assembly.
Features
- Long-lasting design
- Low ground resistance and impedance
- Superior electrical conductivity and resistance to corrosion
- Electrically and mechanically robust and reliable
- Easy to install
Specifications
Specifications
Image 1
| Click image to enlarge. |
|---|
Image 2
| Click image to enlarge. |
|---|
Specifications
| Part Number | B1622QC701 |
|---|---|
| Material | Copper, Steel |
| Earthpoint Type | B162, Two Stud |
| Conductor Type | Yellow-Green Insulated Cable to Solid Round Steel, 10° Angle |
| Conductor Size | 70 mm² Stranded |
| Length 1 (L1) | 39.37" |
| Length 2 (L2) | 4" |
| Depth (D) | 1 5/8" |
| Width 1 (W1) | 1 3/4" |
| Width 2 (W2) | 3 1/4" |
| Diameter (Ø) | 0.47" |
| Thread Size (TS) | 1/2 UNC |
| Angle (a) | 10° |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285688261 |
| EAN-13 | 782856882619 |
