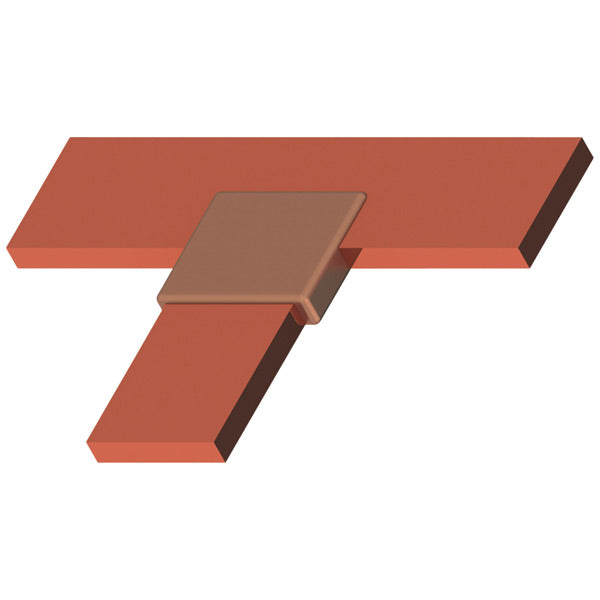

Erico BTJEHEH - GROUNDING - CADWELD MOLD, BUS BAR, VERTTEE
Regular price
$969.59
Unit price
Brand: Erico
|
SKU:
9833493
Regular price
$969.59
Unit price
Description
Description
nVent ERICO Cadweld graphite molds are designed and engineered for thousands of connection styles and conductor combinations.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | BTJEHEH |
|---|---|
| Mold Family | BT |
| Lug/Busbar Size 1 | 1/4" x 2" |
| Lug/Busbar Size 2 | 1/4" x 2" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | 500 or 500PLUSF20, Sold Separately |
| Handle Clamp | L159, Sold Separately |
| Frame | Attached |
| Price Key | J |
| Ease of Use | Most Difficult |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285601229 |
