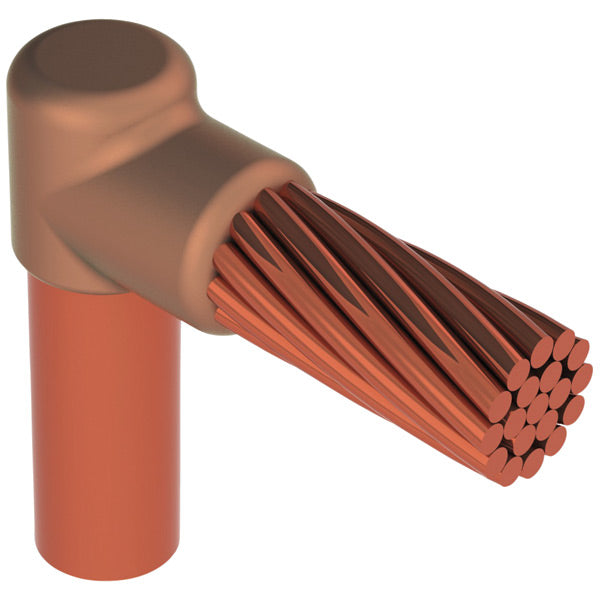

Erico CAGRT181G - GROUNDING - CADWELD MOLD, CABLE TO
Regular price
$173.15
Unit price
Brand: Erico
|
SKU:
9833913
Regular price
$173.15
Unit price
Description
Description
nVent ERICO Cadweld Cathodic Connections are the preferred method of exothermically welding cathodic protection anode leads to pipes (steel or cast iron), tanks, and other structures. Cathodic protection systems are designed to prevent galvanic corrosion along a pipeline or in various structures. nVent ERICO Cadweld Cathodic Connections use a special welding material alloy to minimize heat effect on the steel, which is especially important on thin wall and high stress pipes.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | CAGRT181G |
|---|---|
| Mold Family | GR |
| Ground Rod Type | Copper-bonded |
| Ground Rod Diameter, Nominal | 3/4" |
| Ground Rod Diameter, Actual | 0.682" |
| Conductor Size | #6 Solid |
| Conductor Outer Diameter, Nominal | 0.162" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | CA32 or CA32PLUSF33, Sold Separately |
| Handle Clamp | Mini EZ Attached |
| Price Key | T |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285653095 |
Documents and Downloads
Documents and Downloads
- Cathodic Protection Connections
- nVent ERICO Cathodic Protection Connections. Featuring nVent ERICO Cadweld Molds. Weld Metal and Accessories
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
