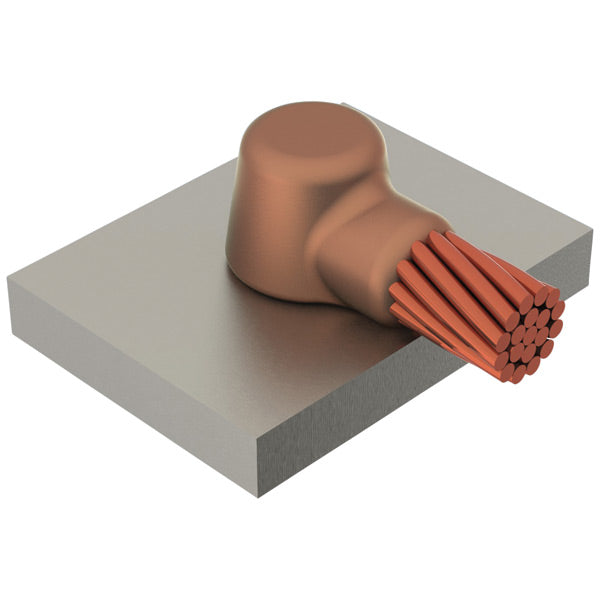

Erico CAHAA2GA - GROUNDING - CADWELD MOLD, CABLE TO HORZ
Regular price
$182.71
Unit price
Brand: Erico
|
SKU:
9838064
Regular price
$182.71
Unit price
Description
Description
nVent ERICO Cadweld Cathodic Connections are the preferred method of exothermically welding cathodic protection anode leads to pipes (steel or cast iron), tanks, and other structures. Cathodic protection systems are designed to prevent galvanic corrosion along a pipeline or in various structures. nVent ERICO Cadweld Cathodic Connections use a special welding material alloy to minimize heat effect on the steel, which is especially important on thin wall and high stress pipes.
Features
- Forms a permanent, low resistance connection
- Provides a molecular bond
- nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor
- Portable installation equipment with no external source of power required
- Installers can be easily trained to make nVent ERICO Cadweld Exothermic Connections
- Connections can be visually inspected
Specifications
Specifications
| Click image to enlarge. |
|---|
Specifications
| Part Number | CAHAA2GA |
|---|---|
| Mold Family | HA |
| Connects To | Steel Pipe |
| Conductor Size | 2/0 Concentric |
| Conductor Outer Diameter, Nominal | 0.418" |
| Pipe Size | 2 1/2" – 3 1/2" |
| Outer Diameter | 2 7/8" – 4" |
| Split Crucible | No |
| Wear Plates | No |
| Mold Only | No |
| Welding Material | CA65 or CA65PLUSF33, Sold Separately |
| Handle Clamp | B323N2 or B320 and B322, Sold Separately |
| Frame | Attached |
| Price Key | A |
| Ease of Use | Preferred |
| Standard Packaging Quantity | 1 pc |
| UPC | 78285601760 |
Documents and Downloads
Documents and Downloads
- nVent ERICO Cathodic Protection Connections. Featuring nVent ERICO Cadweld Molds. Weld Metal and Accessories
- nVent ERICO Cadweld Welded Electrical Connections
- nVent ERICO Cadweld Permanent Grounding Connections meet the requirements of IEEE STD. 837-2014
- nVent ERICO Distribution Pole Solutions
- Your Trusted Source for Grounding & Bonding
- Effect of CADWELD Connections on Galvanized Pipe - Test No. 53d
