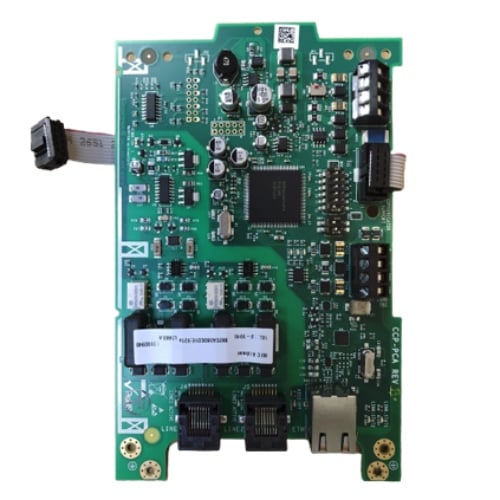

Fire-Lite Alarms IPOTS-COM | Card Communicator Pots IP
Regular price
$388.63
Unit price
Brand: Fire-Lite Alarms Inc.
|
SKU:
963124
Regular price
$388.63
Unit price
Description
Description
Fire-Lite Alarms IPOTS-COM | Card Communicator Pots IP
The HP600UL Series is a line of power-limited supplies/ chargers that will convert 115 VAC/60 Hz input into a powerlimited 12 VDC or 24 VDC output at 6.0 A. They are used in applications requiring UL Listing for Access Control (UL294), Fire Alarm (UL1481), and Burglar Alarm Installations (UL603).
Fire-Lite Alarms - IPOTS-COM - Features
- UL294 for use with Access Control Systems.
- UL1481 for use with Fire Alarm Systems.
- UL603 for use with Burglar Alarm Installations.
- Switch selectable 12 VDC or 24 VDC power-limited output.
- Input 115 VAC/60 Hz, 2.0 A.
- 6.0A continuous supply current at 12 VDC or 24 VDC.
- Filtered and electronically regulated outputs.
- Built-in charger for sealed lead-acid or gel-type batteries. Charge current is 600 mA.
- Automatic switch-over to standby battery when AC fails.
- AC input and DC output LED indicators.
- AC fail supervision (Form "C" contacts).
- Low-battery supervision (Form "C" contacts).
- Low-battery disconnect prevents battery from deep discharge.
- Thermal overload protection.
- Short circuit protection.
- Battery leads included.
Specifications
Specifications
Fire-Lite Alarms - IPOTS-COM - Specifications
| Manufacturer Part | IPOTS-COM |
|---|---|
| Brand | Fire-Lite Alarms |
| Weight | 11 lbs |
| Dimensions | 13.00 × 13.50 × 3.25 in |
