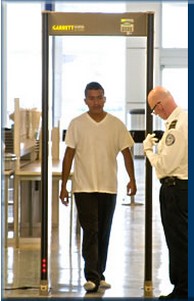

Garrett Metal Detectors PD6500I Walk Through Metal Detector

The PD 6500i is the world's highest performing walk-through metal detector and leads the industry with superior pinpoint technology and unmatched discrimination and sensitivity features. Designed for maximum patron throughput without compromising safety, the PDi is the walk-through of choice for security professionals worldwide.

Features

Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc

The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all U.S airport installations

Multi-dimensional coil design (33 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation

Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons

Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges

Durable, IP 55 weather-proof construction

Specs

Manufacturer Garrett Metal Detectors - Usa

Condition New

Operating Temperatures -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing

Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards

Weatherproofing / Foreign Object Protection Standards Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529

Tamper-Proof All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics

Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum

Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices

Traffic Counter Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage

Synchronization Dual channels and DSP circuitry allow several PD 6500i's to operate simultaneously in close proximity to one another

Interference Suppression Special Garrett DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources

Programs Sixteen (16) independent programs designed to meet all installation-specific requirements including the new Enhanced Metal Detector (EMD) requirements for U.S. airports

Alarms Audible tone and volume adjustable. Bright LED visual alarm

Target Pinpointing Lights Thirty-three (33) distinct zones are displayed with two (2) independent columns of LED's located on exit side of PD 6500i

Pacing Lights International symbols
