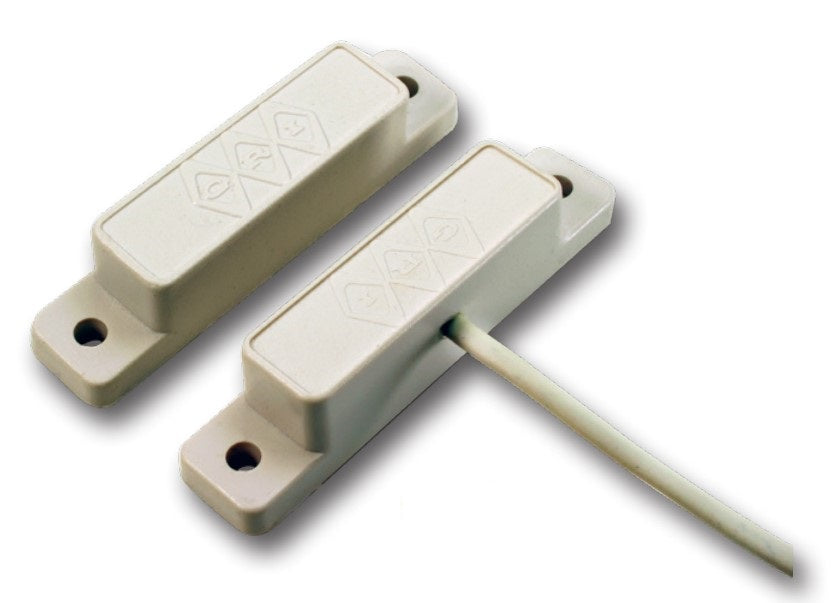

George Risk Industries (G.R.I.) 29PAWG-B | Surface Mount Magnetic Reed Switch Set, Gray, Dpdt, Wide Gap Up To 1-1/2", Jacketed Cable

George Risk Industries (G.R.I.) 29PAWG-B | Surface Mount Magnetic Reed Switch Set, Gray, Dpdt, Wide Gap Up To 1-1/2", Jacketed Cable

This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty.

The "P" style is a pre-wired switch with 2 feet of conductor cable.

A broad range of mounting brackets are also available.

• Lifetime warranty against workmanship, material and factory defects
• UL and ULC approved
• Concealed terminals on 28 Series
• 24" jacketed cable on PA Series
• Longer leads upon request on PA series
• Side mounted screw terminals on 29 series
• Standard gap up to 1", 5/8" on steel
• Wide gap up to 1 1/2", 3/4" on steel
• Extra wide gap up to 2", 1" on steel
• Spacers, covers and screws Included

• Screw Down Flanges
• Concealed Screw Terminals on 28 Series
