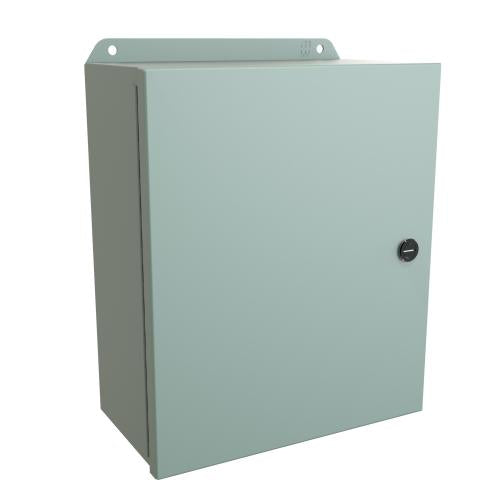

Hammond Manufacturing EJ12105 | NEMA 4/12 Eclipse Junior Enclosure with Panel, 12" x 10" x 5", Steel/Gray

The EJ12105 is a 12" x 10" x 5" Eclipse Junior enclosure with panel, constructed of steel and finished in gray. It meets UL 508A and CSA standards for NEMA 3R, 4, 12, and 13, ensuring protection from dust, water, and environmental hazards. Ideal for compact electrical or control applications requiring reliable enclosure solutions.

Hammond Manufacturing - EJ12105 - Features

• Standards
• UL 508A Type 3R, 4, 12 and 13
• CSA Type 3R, 4, 12 and 13
• Complies with
• NEMA Type 3R, 4, 12 and 13
• IEC 60529, IP66
• Construction
• Body and cover are formed from 16 gauge steel.
• Smooth, continuously welded seams without knockouts, cutouts, or holes.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• 14 gauge welded brackets provide for enclosure mounting.
• Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
• Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• Quarter turn latches formed from black zinc diecast.
• Seamless poured-in place gasket.
• Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
• Internal threaded weld studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
• Grounding and panel mounting hardware provided.
• Finish
• Cover and enclosure are finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
• Inner panels are unpainted galvanized steel.

Hammond Manufacturing - EJ12105 - Applications

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
• For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Impressive styling features make the Eclipse Junior a suitable addition to any high-tech equipment installation.

Hammond Manufacturing - EJ12105 - Product Categories

• Industrial
• Electrical Enclosures
• Electrical Enclosures
• Electrical
• Mild Steel
• Junction Boxes

Hammond Manufacturing - EJ12105 - Specifications

Brand Name	Hammond Manufacturing Co
Manufacturer Number	EJ12105
Item Description	NEMA 4/12 Eclipse Junior Enclosure with Panel, 12" x 10" x 5", Steel/Gray
Cover Type	Hinged
Material	Steel (Mild)
Nema Rating	Type 4/12
UNSPSC Code	24102001
Part Number	EJ12105
Series	Type 4 Mild Steel Junction Box (Eclipse Junior Series)
Size H x W x D	12 in x 10 in x 5 in (305 mm x 254 mm x 127 mm)
Shipping Weight	12 lbs(5.44 kg)
UNSPSC	39121324
UPC	623980357775
UL File #	E65324
CSA Cert. #	LR21001
REACH Compliant	Yes
RoHS Compliant	Yes
Packaging Type	Box
