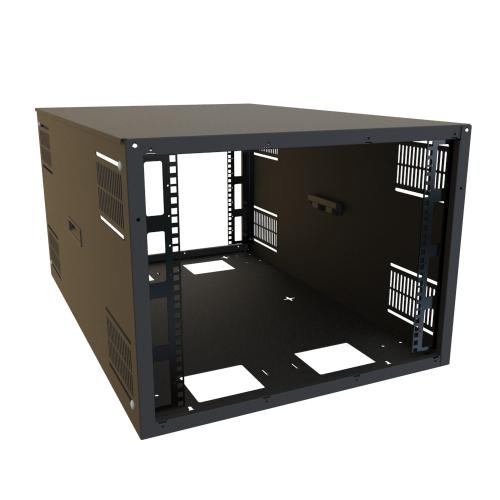

Hammond Manufacturing SDC249U36BK | 9U 24"W x 36"D Multi-Use Cabinet

The SDC249U36BK is a 9U multi-use cabinet with a 24"W x 36"D footprint. Made for versatile installations, it features adjustable-depth 19" mounting rail slots and options for fan integration. Constructed from durable materials, it supports a wide range of rackmount equipment in telecom and AV environments.

The SDC Series is a multi-purpose rack with a variety of mounting options for equipment racks. It's perfect for securing rack-mount equipment in areas where space for a standard rack or cabinet is restricted or non-existent. The modular design features a body with a variety of attachment options to fit your specific needs.

Hammond Manufacturing - SDC249U36BK - Features

• Available in 3U, 6U and 9U mounting heights.
• Available in 17.5", 24.5", 31.5" and 36" overall depths.
• 19" Mounting rail slots allow for adjustable depth rails and/or optional fan installation.
• Mounting rails are easily removed for non-rack mounting equipment.
• Starter pack of CAGKIT1032-10 screws and cage nuts included with 3U units or CAGKIT1032-50 screws and cage nuts included with 6U & 9U units.
• Removable cover panel for ease of equipment installation.
• Four (4) cutouts are included, which are ideal for mounting above an electrical receptacle and/or cable entry.
• Interior cable management lances.
• Removable plastic handles for side mounting storage.
• Optional surface mounted doors with quarter-turn lock and end cap available.
• Cabinet frame, removable cover and doors constructed in 16-gauge steel.
• Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are finished in smooth black powder paint.
• Suggest static load rating .
• Wall Mount (Rack Mounted) up to 150 lbs (68 kg).
• Wall Mount (Rails removed) up to 50 lbs (22 kg).
• Ceiling/ Under Desk Mount up to 150 lbs (68 kg).
• Freestanding (with or without casters) up to 800 lbs (362 kg).
• Grounding studs are provided on the frame as well as side panels and doors.
• Finished in sand textured RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
• Optional Accessory Features
• Locking Vented Door
• includes a quarter turn-key lock. The 63% perforation provides airflow for either the front and/or rear of the frame.
• Locking Solid Door
• includes a quarter turn-key lock.
• Locking Cable/Fan Door
• includes two openings for rear cable entry that maintain security while allowing cables to enter the cabinet. The door also includes laser knockouts for optional fan kits .
• Conduit/Fan Panel
• mounts directly to either end of the cabinet providing secure mounting of 2.5”, 2.0”, 13/18”, 13/4”, 11/8” and/or 7/8” conduit knockouts. Also includes laser knockouts for optional fan kits
• Ideal for Securing Rack Mount Equipment in Spaces where Room for a Traditional Rack or Cabinet
• Interior Cable Management Lances
• Removable Plastic Handles for Side Mounting Storage
• RoHS Compliant

Hammond Manufacturing - SDC249U36BK - Product Categories

• Hardware
• Racks And Cabinets
• Racks, Cabinets, Frames and Enclosures
• Wall Mount Racks and Cabinets
• Wall Mount Racks

Hammond Manufacturing - SDC249U36BK - Specifications

Brand Name	Hammond Manufacturing Co
Manufacturer Number	SDC249U36BK
Item Description	9U 24"W x 36"D Multi-Use Cabinet
UNSPSC Code	24102001
Part Number	SDC249U36BK
Series	Wall or Floor Rack Cabinet (SDC Series)
Size H x W x D	17.97 in x 24 in x 36 in (456 mm x 610 mm x 914 mm)
Shipping Weight	68 lbs(30.84 kg)
UNSPSC	43223306
UPC	623980955773
REACH Compliant	Yes
RoHS Compliant	Yes
Rack Units	9
Rack Type	Enclosed Wall Rack
Paint Color	RAL9005 Black
Rail Type	Square Hole with 10-32 Cage Nu

Hammond Manufacturing - SDC249U36BK - Documents and Downloads

Hammond Manufacturing SDC249U36BK Specification Sheet 1	Click to View
Hammond Manufacturing SDC249U36BK Specification Sheet 2	Click to View
Hammond Manufacturing SDC249U36BK Installation Instructions	Click to View
