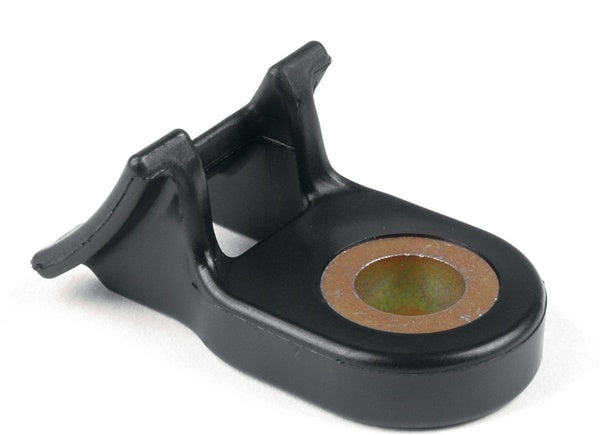

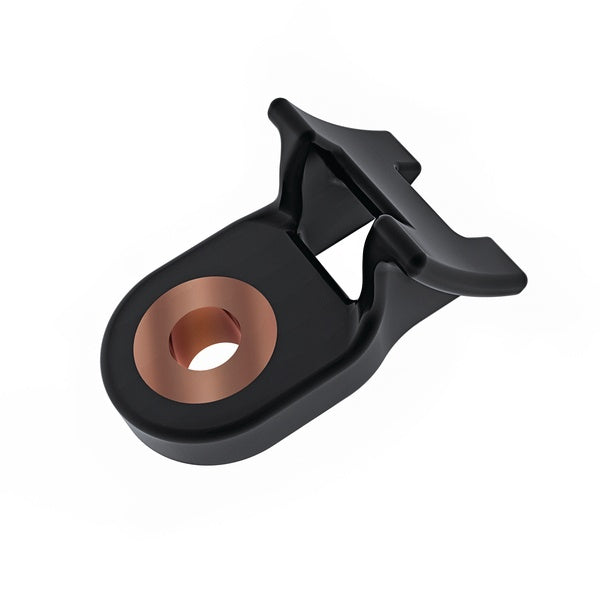

HellermannTyton 151-01224 | High Torque Mount, 0.375" Mounting Hole Dia, 114.0 Lb/Ft Max Torque, Pa66Hirhsuv, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01224 | High Torque Mount, 0.375" Mounting...
Description
Description

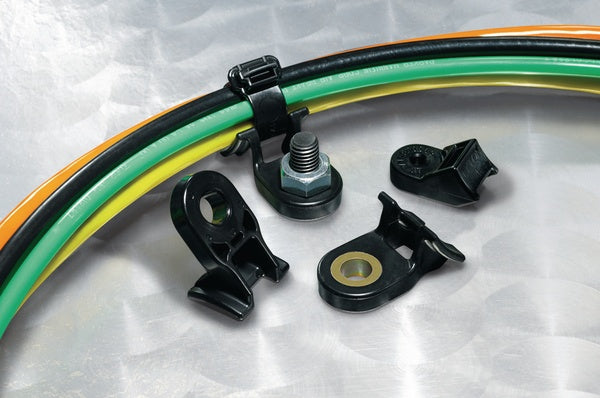

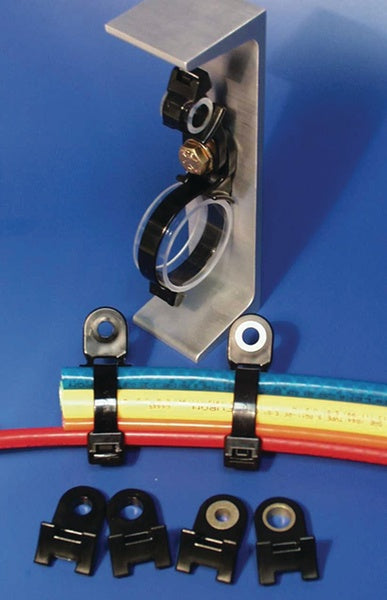

This heavy duty mount, when used with a cable tie eliminates the need to carry multiple sizes of fixed bundle diameter clamps; which reduces inventory and purchasing costs while simplifying the assembly process.
This heavy duty mount, when used with a cable tie eliminates the need to carry multiple sizes of fixed bundle diameter clamps; which reduces inventory and purchasing costs while simplifying the assembly process.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01224 - Features
- Mount and tie combination makes it easy to service bundles in the field.
- Made from impact modified, heat stabilized, UV resistant material, ideal for heavy duty environments.
- Eliminates the needs for multiple sized fix diameter clamps.
- Spiral reinforced construction provides protection from crushing yet remains extremely flexible.
- Lightweight, easy-to-use material reduces installation time and labor costs.
- Material stands up to vibration and limited torsional movement without creation of stress points or cracks.
- Smooth inside bore protects wires and eases insertion of wire bundles.
- UV resistant; suitable for use in outdoor applications.
Specifications
Specifications
HellermannTyton - 151-01224 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Heavy Duty Cable Tie Mounts
- Mounts Secured with Mechanical Fasteners - Single Bundle
HellermannTyton - 151-01224 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .375 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-01224 - Base Data
| Article Number | 151-01224 |
|---|---|
| Type | HDM400 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | High Torque Mount, 0.375" Mounting Hole Dia, 114.0 lb/ft Max Torque, PA66HIRHSUV, Black, 500/pkg |
| Global Part Name | HDM400-PA66HIRHSUV-BK |
HellermannTyton - 151-01224 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 120 |
|---|---|
| Minimum Tensile Strength (Metric) | 533 |
| Length L (Imperial) | 1.85 |
| Length L (Metric) | 47 |
| Fixation Method | Screw Mounting and Rivet |
| Width W (Imperial) | 0.98 |
| Width W (Metric) | 25 |
| Height H (Imperial) | 0.81 |
| Height H (Metric) | 20.7 |
| Cable Tie Width Max (Imperial) | 0.5 |
| Cable Tie Width Max (Metric) | 12.7 |
| Mounting Hole Diameter D (Imperial) | 0.405 |
| Mounting Hole Diameter D (Metric) | 10.29 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.405 |
| Mounting Hole Diameter D Max (Imperial) | 0.405 |
| Mounting Hole Diameter D Max (Metric) | 10.29 |
| Stud Diameter (Metric) | 10.0 mm |
| Stud Diamater (Imperial) | 0.375 |
HellermannTyton - 151-01224 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01224 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Maximum Torque (kgf-cm) | 1576 |
| Maximum Torque (lbf-ft) | 114 |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
