HellermannTyton 309-65133 | Heat Shrink Tubing, Bulk Reel, 2:1 Shrink Ratio, 3/16", 4.8/2.4 Dia, Po, Black, 1000 Ft/Reel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 309-65133 | Heat Shrink Tubing, Bulk Reel, 2:1 Shri...
Description
Description
TFN21 is a highly flexible thin wall heat shrink tubing with a 2 to 1 shrink ratio and excellent flame retardant properties. In addition to providing insulation and abrasion protection for wires and cables, the polyolefin material also offers resistanc e to oils, solvents and chemicals. Available in mini reels, bulk reels and sticks, for small to large volume applications.
TFN21 is a highly flexible thin wall heat shrink tubing with a 2 to 1 shrink ratio and excellent flame retardant properties. In addition to providing insulation and abrasion protection for wires and cables, the polyolefin material also offers resistance to oils, solvents and chemicals. Available in mini reels, bulk reels and sticks, for small to large volume applications.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 309-65133 - Features
- Thin, 2 to 1 shrink ratio tubing provides insulation and abrasion protection for wires and cables.
- Flammability rating of UL224 VW-1 for use in applications requiring the highest degree of flame protection (excludes clear tubing).
- Flexible-yet-durable material resists most common oils, chemicals and fluids.
- Available in a variety of diameters and colors for identifying and marking wires and cables.
- Available in mini reels, bulk reels, and sticks for small to large volume applications.
- A temporary film is applied to the covers to protect against scratches and is writable for identification during installation.
- Cover is flush with the side of the duct for increased wire capacity and allows for tight, side by side duct placement.
- Covers are provided with a non-slip lining, which insures the covers remain in place during vibration, yet they easily snap on and off. (Covers to be purchased separately)
Specifications
Specifications
HellermannTyton - 309-65133 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Heat Shrink Tubing
- Non-adhesive 2 to 1 Shrink Ratio
HellermannTyton - 309-65133 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .018 Inch |
| Dual | No |
| Heat Shrink | Yes Is Shrink Tubing |
| Mil Spec | No |
| Material/Type | Po-Polyolefin |
| Military Color Code | Black |
| Size By Inch Fractions | 3/16 Inch |
| Sleeving | Yes |
| Spiral Wrap | No |
| Ul | Yes |
| Wall Type| Single Or Dual | Single Wall |
| Zipper | No |
| UNSPSC Code | 39121723 |
HellermannTyton - 309-65133 - Base Data
| Article Number | 309-65133 |
|---|---|
| Type | TFN21 4.8/2.4 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Heat Shrink Tubing, Bulk Reel, 2:1 Shrink Ratio, 3/16", 4.8/2.4 Dia, PO, Black, 1000 ft/reel |
| Global Part Name | TFN21 4.8/2.4-PO-X-BK |

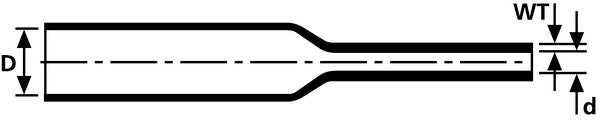

HellermannTyton - 309-65133 - Product Dimensions
| Length L (Imperial) | 1000 |
|---|---|
| Length L (Metric) | 304.8 |
| Variant | Thin-Wall |
| Nominal Diameter (Imperial) | 0.19 |
| Nominal Diameter (Metric) | 4.8 |
| Wall Thickness WT (Imperial) | 0.019 |
| Wall Thickness WT (Metric) | 0.48 |
HellermannTyton - 309-65133 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 304.8 |
| Customs Number | 3.93E+09 |
HellermannTyton - 309-65133 - Materials & Specifications
| Material | Polyolefin, cross-linked (PO-X) |
|---|---|
| Material Shortcut | PO-X |
| Flammability | UL 224 VW-1 (except clear) |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL | ANSI/UL 224CSA |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
