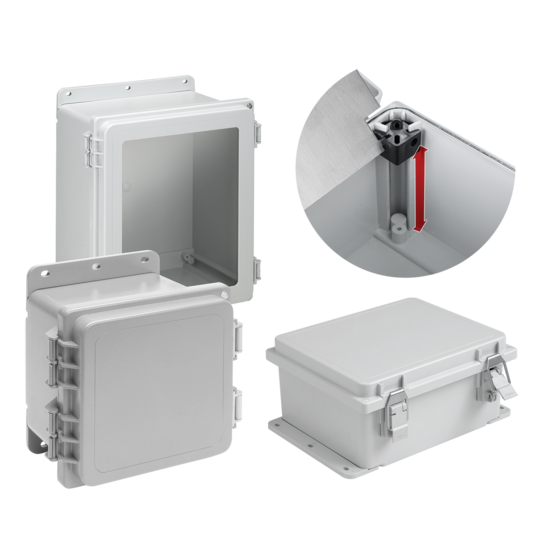

Hoffman A10106PHCW | PolyPro, Type 4X, 10.04x10.04x6.38, Polyester,...
Regular price
$322.96
Unit price
Brand: Hoffman
|
SKU:
648886
Regular price
$322.96
Unit price
Description
Description
PolyPro polyester enclosures perform exceptionally well in applications where harsh chemicals, weather extremes and corrosive environments demand toughness from a lightweight enclosure. Providing excellent ultraviolet protection and a tight environmental seal, these versatile, feature-rich enclosures are also recyclable.
Purchase panels separately. Panels are available in aluminum, mild steel, stainless steel, conductive and composite materials.
Main Features
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Optional cover screws included with all models
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- Window flammability evaluated per UL 508A
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. 42186; Type 4, 4X, 12, 13 (solid covers only)
- IEC 60529, IP66
Hoffman On Demand Alternatives
- Catalog #: A864PHC
- Catalog #: A12106PHC
Specifications
| Height | 10.04 in / 255 mm |
|---|---|
| Width | 10.04 in / 255 mm |
| Depth | 6.38 in / 162 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polyester |
| Panel Size | 8.75 x 8.88 in / 222 x 226 mm |
| Aluminum Panel | A10P10AL |
| Steel Panel | A10P10 |
| Cover Style | Window |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| BULLETIN NUMBER | PCR |
