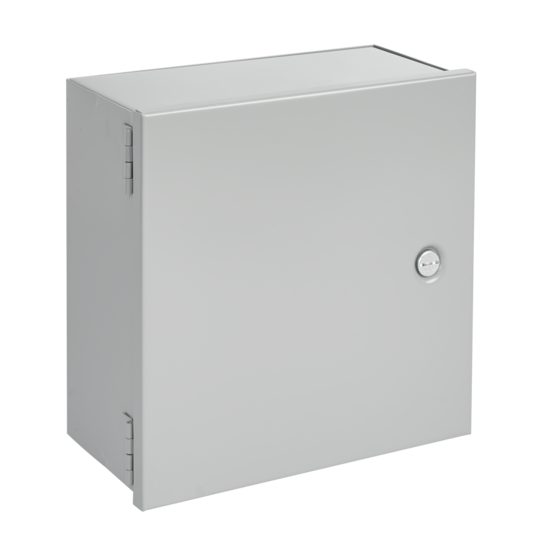

Hoffman A12N124 | Small Type 1, 12.00x12.00x4.00, Gray, Steel
Regular price
$209.79
Unit price
Brand: Hoffman
|
SKU:
366331
Regular price
$209.79
Unit price
Description
Description
Small Hinged-Cover, Type 1, have a size range of 6 x 6-in. to 14 x 12-in., mounting provision for optional panel and meet basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures.
Purchase panels separately.
Main Features
- Butt hinges on door
- Flush slotted latch operated with a screwdriver; optional latches available
- Weldnuts provided for mounting optional panels
- Butt hinges
- Mounting holes on back of enclosure
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 1; File No. E27567
- cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
- NEMA/EEMAC Type 1
- CSA, File 42184: Type 1
- IEC 60529, IP30
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 16 ga / 1.52 mm |
| Panel Size | 10.25 x 10.25 in / 260 x 260 mm |
| Panel | A12N12P |
| Perforated Panel | A12N12PP |
| BULLETIN NUMBER | A1SM |
Documents and Downloads
Documents and Downloads
- Hoffman A12N124 Data Sheet
- Hoffman A12N124 Declaration of Conformity, CSA Type 12
- Hoffman A12N124 CERT-00046
- Hoffman A12N124 Declaration of Compliance
- Hoffman A12N124 Hinge-Cover, Small, Type 3R Instruction Manual
- Hoffman A12N124 Large, Type 1 Instruction Manual
- Hoffman A12N124 Single-Sided Shelf Repainting Instructions
