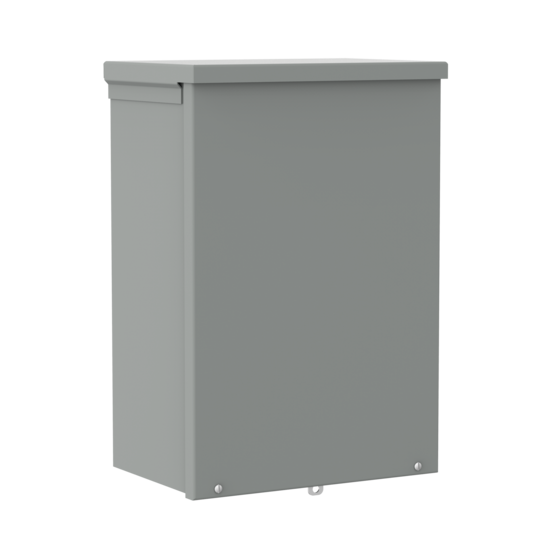

Hoffman A12R126 | Screw-Cover Type 3R With Knockouts, 12.00x12.00x6.00, Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A12R126 | Screw-Cover Type 3R With Knockouts, 12.00x12.00x6...
Description
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water.
For the following items, the body top and bottom thickness is 16 gauge (1.6mm): A24R246(NK), A24R248(NK), A30R248(NK), A24R2410(NK), A30R2410.
For the following items, the body top thickness is 14 gauge (2.0mm) and the body bottom thickness is 16 gauge (1.6mm): A48R368(NK), A24R2412(NK), A30R3012(NK), A36R3012(NK), A36R3612(NK), A30R3016(NK), A48R3616(NK).
Main Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27525
- cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Related Accessories
- Catalog #: AMFK3RL016
- Catalog #: AGS816
- Catalog #: AGLK2
- Catalog #: AGS408
- Catalog #: AGS416
- Catalog #: AGS808
- Catalog #: ATPPY61
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 16 ga / 1.52 mm |
| Door Thickness | 16 ga / 1.52 mm |
| Knockouts Included | Yes |
| Mounting | 2.25 in / 57 mm / 1.06 in / 27 mm |
| BULLETIN NUMBER | A90S3 |
Documents and Downloads
Documents and Downloads
- Hoffman A12R126 Data Sheet
- Hoffman A12R126 CE-00074
- Hoffman A12R126 CERT-00115
- Hoffman A12R126 Declaration of Compliance
- Hoffman A12R126 Current Transformer Cabinets, 400-800 Amp, Type 3R Instruction Manual
- Hoffman A12R126 Single-Sided Shelf Repainting Instructions
- Hoffman A12R126 Padlock Hasp Kit Instruction Manual
