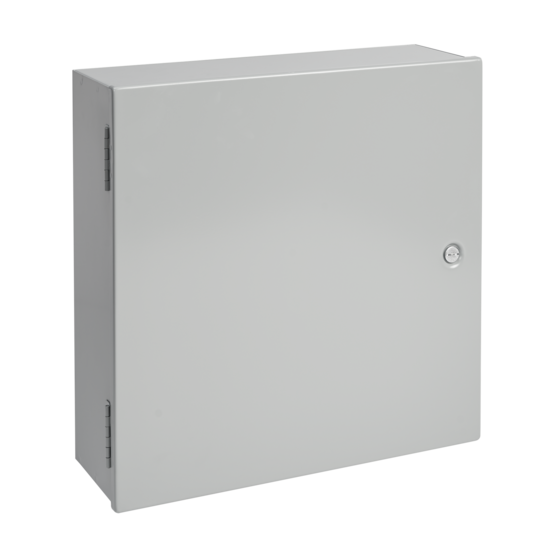

Hoffman A16N16ALP | Medium Hinged-Cover Type 1, 16.00x16.00x6.62, G...
Regular price
$431.03
Unit price
Brand: Hoffman
|
SKU:
614947
Regular price
$431.03
Unit price
Description
Description
Medium Hinged-Cover Pull Box, Type 1, have a size range of 16 x 12 -in. to 36 x 30-in., mounting provision for optional panel, and meet basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures.
Purchase panels separately.
The following Perforated Panels are flanged on four sides: A24N24MPP, A30N20MPP, A30N24MPP, A30N30MPP, A36N24MPP and A36N30MPP.
Main Features
- Butt hinges on door
- Collar studs provided for mounting optional panel
- Slotted flush latches; optional latches available
- Mounting holes on back of enclosure
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 1; File No. E27567
- cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
- NEMA/EEMAC Type 1
- CSA, File 42184: Type 1
- IEC 60529, IP30
Related Accessories
- Catalog #: A16N16MPP
- Catalog #: A16N16MP
- Catalog #: APWK95NF
- Catalog #: AL12AR
- Catalog #: AL7A
- Catalog #: AGLK2
- Catalog #: AGS408
- Catalog #: AGS416
Specifications
| Height | 16 in / 406 mm |
|---|---|
| Width | 16 in / 406 mm |
| Depth | 6.62 in / 168 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Panel Gauge | 14 |
| Panel | A16N16MP |
| Perforated Panel | A16N16MPP |
| BULLETIN NUMBER | A1M |
