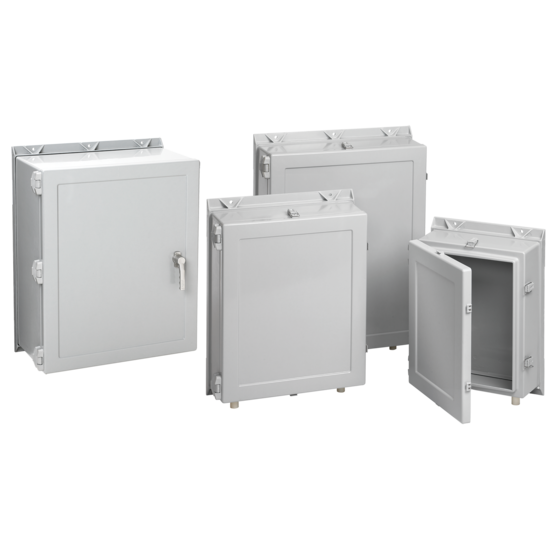

Hoffman A36H3012GQRLP | Hinge Cover with Quick-Release Latch Type 4X, 36.25x30.25x12.00, Fiberglass
Hoffman A36H3012GQRLP | Hinge Cover with Quick-Release Latch Type 4X, 36.25x30.25x12.00, Fiberglass

Hoffman A36H3012GQRLP | Hinge Cover with Quick-Release Latch Type 4X, 36.25x30.25x12.00, Fiberglass

Part Number: 363732
0 Review(s)
Write a Review
Availability:
$2,864.53
Retail Price:$3,214.00
Your Savings:$349.47(11%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches, or HOFFMAN's exclusive PowerGlide Handle with 3-point latching, for ease of access with increased security.

Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories




https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
  • Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
  • Seams are sealed; no holes or knockouts
  • Gasket assures water-tight and dust-tight seal
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Data pocket is high-impact thermoplastic
  • Copper-flashed steel collar studs for mounting optional panels and terminal block kits



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Industry Standards

  • UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
  • cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
  • Enclosure flammability evaluated per UL 508A
  • NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
  • IEC 60529, IP66
  • Meets NEMA Type 3RX requirements



https://www.alldataresource.com/assets/images_tripplite/applications.jpg

Related Accessories

  • Catalog #: TE162024011
  • Catalog #: A36P30
  • Catalog #: A36P30G
  • Catalog #: A36P30AL
  • Catalog #: A36P30SS6
  • Catalog #: APWK116NFNM
  • Catalog #: APWK138NFNM
  • Catalog #: APWK53NFNM



https://www.alldataresource.com/assets/images_tripplite/applications.jpg

Hoffman On Demand Alternatives

  • Catalog #: A30H2412GQRLP
  • Catalog #: A24H2408GQRLP



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Specifications

Height36.25 in / 921 mm
Width30.25 in / 768 mm
Depth12 in / 305 mm
Protection RatingNEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66
MaterialFiberglass
FinishSmooth Matte
ColorGray
Thickness0.13 in / 3.3 mm
Latch Quantity5
PanelA36P30
Conductive PanelA36P30G
Panel Size33.00 x 27.00 in / 838 x 686 mm
BULLETIN NUMBERA17WM



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Hoffman A36H3012GQRLP Data SheetClick to View
Hoffman A36H3012GQRLP CE-00033Click to View
Hoffman A36H3012GQRLP Declaration of ComplianceClick to View
Hoffman A36H3012GQRLP CERT-00038Click to View
Hoffman A36H3012GQRLP Fiberglass Free-Stand, Type 4X Instruction ManualClick to View
Hoffman A36H3012GQRLP Fiberglass Free-Stand, Type 4X Instruction ManualClick to View
