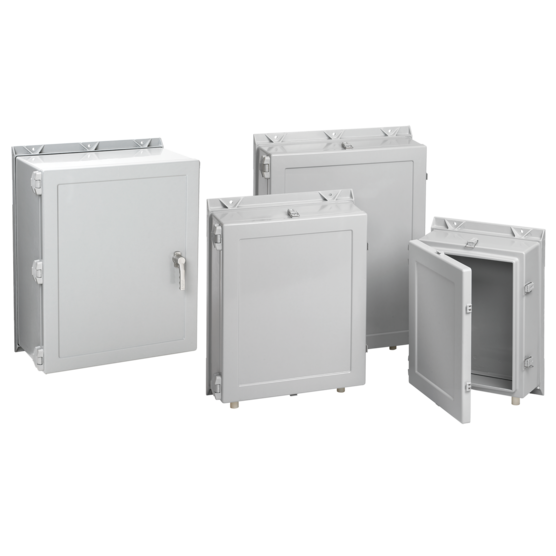

Hoffman A48H3612GQRLP | Hinge Cover with Quick-Release Latch Type 4X, 48.25x36.25x12.00, Fiberglass
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A48H3612GQRLP | Hinge Cover with Quick-Release Latch Type 4...
Description
Description
A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches, or HOFFMAN's exclusive PowerGlide Handle with 3-point latching, for ease of access with increased security.
Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories
Main Features
- Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
- Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
- Seams are sealed; no holes or knockouts
- Gasket assures water-tight and dust-tight seal
- Fiberglass material is easily punched, drilled, filed or sawed
- Data pocket is high-impact thermoplastic
- Copper-flashed steel collar studs for mounting optional panels and terminal block kits
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: TE162024011
- Catalog #: A48P36
- Catalog #: A48P36G
- Catalog #: A48P36AL
- Catalog #: A48P36SS6
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
- Catalog #: APWK53NFNM
Hoffman On Demand Alternatives
- Catalog #: A30H2412GQRLP
- Catalog #: A24H2408GQRLP
Specifications
| Height | 48.25 in / 1226 mm |
|---|---|
| Width | 36.25 in / 921 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66 |
| Material | Fiberglass |
| Finish | Smooth Matte |
| Color | Gray |
| Thickness | 0.15 in / 3.8 mm |
| Latch Quantity | 8 |
| Panel | A48P36 |
| Conductive Panel | A48P36G |
| Panel Size | 45.00 x 33.00 in / 1143 x 838 mm |
| BULLETIN NUMBER | A17WM |
