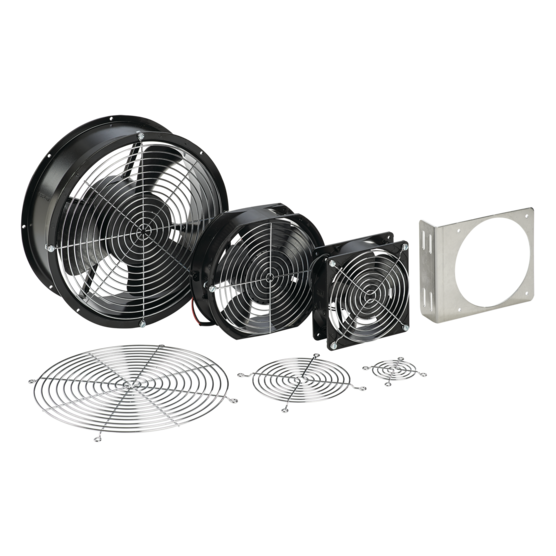

Hoffman A4AXFNGQ | Compact Axial Fan, 115V, 4-inch, 49 CFM, Power Cord Quiet Fan
Hoffman A4AXFNGQ | Compact Axial Fan, 115V, 4-inch, 49 CFM, Power Cord Quiet Fan

Hoffman A4AXFNGQ | Compact Axial Fan, 115V, 4-inch, 49 CFM, Power Cord Quiet Fan

Part Number: 430162
0 Review(s)
Write a Review
Availability:
$148.24
Retail Price:$166.32
Your Savings:$18.08(11%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Compact Cooling Fans are ideal for applications where enclosure space is limited and quiet, reliable cooling is required. Engineered for 50, 000 hours of continuous operation without lubrication or service.




https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • Maximum operating temperature is 158 F (70 C)
  • 4-inch fan is thermally protected and uses permanently lubricated ball bearings
  • 6- and 10-inch fans have ball-bearing construction and split-capacitor motors
  • Split-capacitor motors are thermally protected to avoid premature failure
  • Dynamically balanced impellers molded from polycarbonate material
  • One finger guard is furnished (additional finger guards are available)
  • All mounting hardware is provided
  • 240 and 560 CFM fans have ball bearing construction and split capacitor motors
  • Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
  • Fan bracket and additional finger guards must be purchased separately



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Industry Standards

  • UL Component Recognized



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Specifications

Height4.62 in / 117.348 mm
Width4.62 in / 117.348 mm
Depth1.74 in / 44.196 mm
Airflow49 ft?min / 83 m?h
Nominal Voltage115 V
Voltage AC100 V
Max Current0.09 A
MaterialMild Steel
Fan Diameter4.69 in
FinishPowder Coated
ColorJet Black
Color CodeRAL 9005
BULLETIN NUMBERDTHRM



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Hoffman A4AXFNGQ Data SheetClick to View
Hoffman A4AXFNGQ Declaration of ComplianceClick to View
Hoffman A4AXFNGQ CERT-00298Click to View
Hoffman A4AXFNGQ CERT-00277Click to View
Hoffman A4AXFNGQ Compact Axial Fans Instruction ManualClick to View
