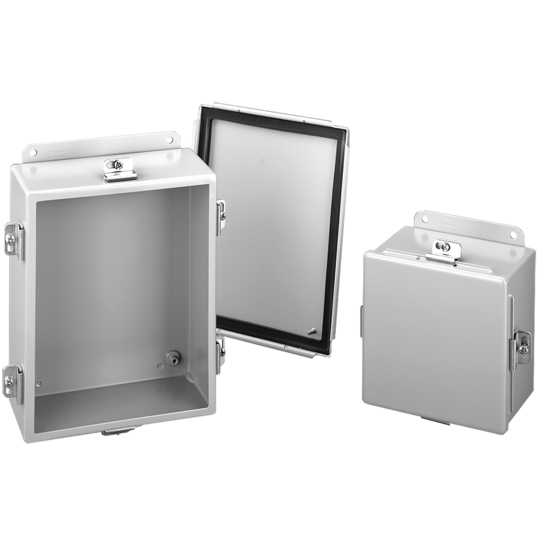

Hoffman A806NF | Clamp Cover, Type 4, 8.00x6.00x3.50, Gray, Steel
Regular price
$216.15
Unit price
Brand: Hoffman
|
SKU:
438293
Regular price
$216.15
Unit price
Description
Description
Clamps on all four sides securely close this enclosure to protect components in indoor or outdoor applications, yet are easy to remove for access and modifications.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- Stainless steel screw-down clamps on four sides of cover
- Bonding provision on cover
- Oil-resistant gasket
- Weldnuts for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- External welded-on mounting brackets for easy installation
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 4, 12, 13; File No. E27525
- cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E27525
- UL 508A Listed; Type 4, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 42184: Type 4, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: A8P6
- Catalog #: A8P6G
- Catalog #: AL23SS
- Catalog #: APLKJIC
- Catalog #: A8P6AL
- Catalog #: APLKJIC6SS
- Catalog #: A8P6SS
- Catalog #: AL18
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 6 in / 152 mm |
| Depth | 3.5 in / 89 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Panel | A8P6 |
| Conductive Panel | A8P6G |
| Panel Size | 6.75 x 4.88 in / 171 x 124 mm |
| Mounting | 8.75 x 4.00 in / 222 x 102 mm |
| Overall Dimensions | 9.50 x 7.38 in / 241 x 187 mm |
| Color | Gray |
| Color Code | ANSI 61 |
| BULLETIN NUMBER | A51NF |
