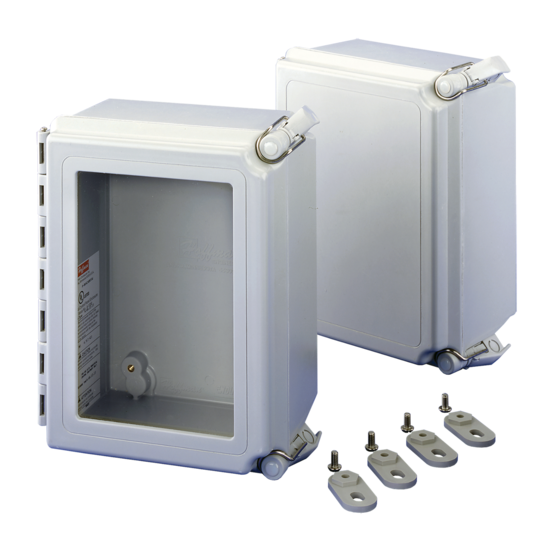

Hoffman A864CHSCFG | Continuous Hinge SC Type 4X, 8.00x6.00x4.00, F...
Description
Description
The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With HOFFMAN's products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.
Main Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- Window flammability evaluated per UL 508A
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: A8P6
- Catalog #: A8P6AL
- Catalog #: A8P6C
- Catalog #: APE050
- Catalog #: APE100
- Catalog #: A8SPK6C
- Catalog #: AL48
- Catalog #: A48MFTHDWK
Hoffman On Demand Alternatives
- Catalog #: A864CHQRFG
- Catalog #: A664CHQRFG
- Catalog #: A181610CHQRFG
- Catalog #: A16148CHQRFG
- Catalog #: A14128CHQRFG
- Catalog #: A12106CHQRFG
- Catalog #: A1086CHQRFG
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 6 in / 152 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Fiberglass |
| Panel Size | 6.75 x 4.88 in / 171 x 124 mm |
| Type | Solid Screw Cover |
| Overall Dimensions | 8.50 x 6.50 in / 216 x 165 mm |
| Steel Panel | A8P6 |
| Mounting | 8.94 x 4.00 in / 227 x 102 mm |
| Aluminum Panel | A8P6AL |
| Color | Light Gray |
| BULLETIN NUMBER | A48 |
