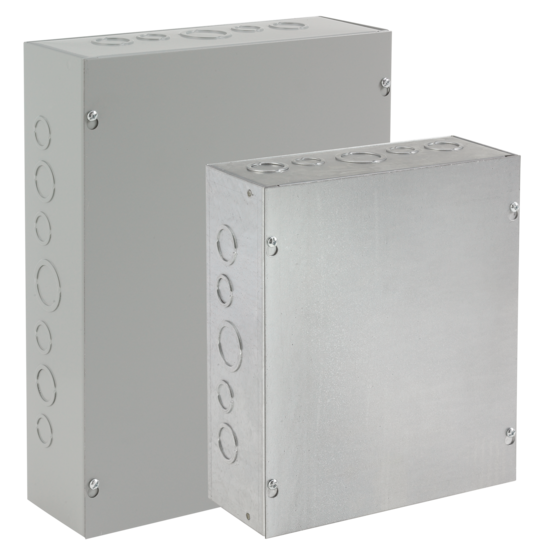

Hoffman ASE12X12X6 | Screw-Cover Type 1 with Knockouts, 12.00x12.00...
Regular price
$64.62
Unit price
Brand: Hoffman
|
SKU:
340344
Regular price
$64.62
Unit price
Description
Description
Screw-Cover, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.
Main Features
- Unique keyhole screw slots in the cover
- Available with or without knockouts
- Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
- Optional flush-mounted door frame available
- Optional flush covers
- Flat, removable covers fastened with plated steel screws
- Provision for grounding
- Mounting holes on back of box
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 1; File No. E27525
- cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525
- NEMA/EEMAC Type 1
- IEC 60529, IP30
Related Accessories
- Catalog #: PB1212PP
- Catalog #: ALDF1212W
- Catalog #: AFE12X12
- Catalog #: AFDF1212P
- Catalog #: AGLK2
- Catalog #: AGS408
- Catalog #: AGS416
- Catalog #: AGS808
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 16 ga / 1.52 mm |
| Door Thickness | 16 ga / 1.52 mm |
| Style | Painted |
| Knockouts Included | Yes |
| BULLETIN NUMBER | A90P1 |
Documents and Downloads
Documents and Downloads
- Hoffman ASE12X12X6 Data Sheet
- Hoffman ASE12X12X6 Declaration of Conformity, Mild Steel Screw Cover Enclosure
- Hoffman ASE12X12X6 Declaration of Compliance
- Hoffman ASE12X12X6 EU Declaration of Conformity, Type 1 Industrial Control Enclosures
- Hoffman ASE12X12X6 Screw-Cover Type 1 Pull Boxes and Accessories Spec Sheet
