Brand: Hoffman
|
SKU:
438301

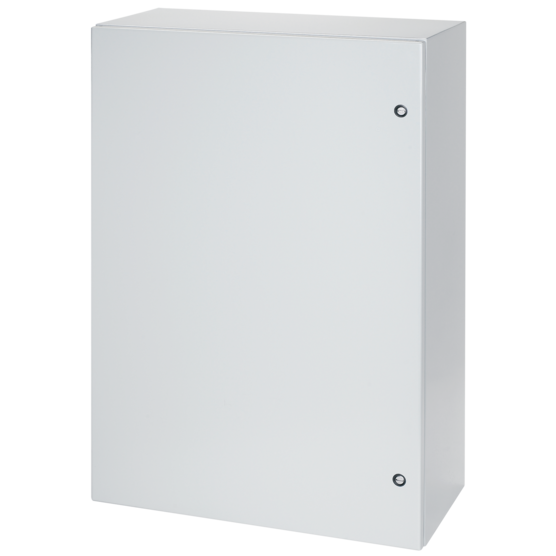

Hoffman CSD16126LG | Concept Single-Door Enclosures, 16.00x12.00x6.00, Lt Gray, Steel
Regular price
$623.03
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman CSD16126LG | Concept Single-Door Enclosures, 16.00x12.00x6....
Regular price
$623.03
Unit price
Brand: Hoffman
|
SKU:
438301
Regular price
$623.03
Unit price
Description
Description
Concept Enclosures have streamlined styling, flush quarter-turn latches and an attractive, durable finish.
Purchase panels separately.
Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
Main Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- Wall-mounting brackets required to maintain UL/CSA external mounting requirement.
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 42186: Type 4, 12
- VDE IP66
Related Accessories
- Catalog #: CWHK
- Catalog #: CWHNL
- Catalog #: CWHPTO
- Catalog #: CMC12
- Catalog #: CMC16
- Catalog #: CMFK
- Catalog #: CMFKSS
- Catalog #: CMTGFT
Hoffman On Demand Alternatives
- Catalog #: CSD603616
- Catalog #: CSD603612
- Catalog #: CSD483616
- Catalog #: CSD483612
- Catalog #: CSD483610
- Catalog #: CSD483016
- Catalog #: CSD423612
- Catalog #: CSD423610
Specifications
| Height | 16 in / 406 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 16 ga / 1.52 mm |
| Door Thickness | 16 ga / 1.52 mm |
| Concept Panel | CP1612 |
| Conductive Concept Panel | CP1612G |
| BULLETIN NUMBER | CW1 |
