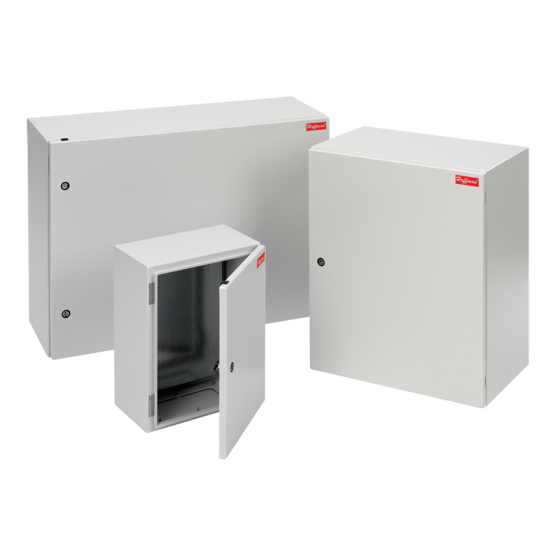

Hoffman G300400200G | Fusion G7, Type 4, 12, 300x400X200mm, Steel
Hoffman G300400200G | Fusion G7, Type 4, 12, 300x400X200mm, Steel

Hoffman G300400200G | Fusion G7, Type 4, 12, 300x400X200mm, Steel

Part Number: 438376
0 Review(s)
Write a Review
Availability:
$565.22
Retail Price:$603.45
Your Savings:$38.23(6%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Innovative, metric-dimensioned wall-mount enclosure designed to house and protect electrical and electronic components in industrial environments. Provides traditional enclosure functionality with scalable internal component mounting capability using the optional internal mounting system and accessory components.

NOTE: G400300150 does not have a gland plate.




https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • Seamless foam-in-place gasket
  • Reversible door with sealed hinges and hinge brackets
  • Gland plate(s) for enclosure bottom
  • Bonding provision on door; grounding studs (2) on body
  • Full-height galvanized steel back panel included
  • External formed 90-degree body flange channels away liquids
  • Three-point latching on enclosures 1000-mm high and taller
  • Door alignment device on doors with 3-point latching and 800 mm or wider
  • Pre-cut gland plate opening(s) in enclosure bottom
  • Quarter-turn latch(es) with 3-mm double-bit insert
  • Corner-formed door
  • Simple, easy-to-remove and install hinge pins with captivation clip
  • High-torque threadless studs and fasteners on door
  • Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
  • Hardware kit includes grounding and sealing hardware
  • Hinged on right side
  • Installation instruction provided



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Industry Standards

  • UL 508A Listed; Type 4, 12; File No. 61997
  • cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. 61997
  • Wall-mounting brackets required to maintain UL/CSA external mounting requirement.
  • NEMA/EEMAC Type 4, 12, 13
  • CSA File No. 42186: Type 4, 12
  • IEC 60529, IP66



https://www.alldataresource.com/assets/images_tripplite/applications.jpg

Related Accessories

  • Catalog #: G300P400H
  • Catalog #: G300SMP200
  • Catalog #: G300SMP200H
  • Catalog #: G400P300
  • Catalog #: CLKDBM3
  • Catalog #: CLKSLOT
  • Catalog #: CLKSM7
  • Catalog #: CLKTM7



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Specifications

Height11.81 in / 300 mm
FinishPowder Coated
Width15.75 in / 400 mm
ColorLight Gray
Depth7.87 in / 200 mm
Protection RatingNEMA Type 12; NEMA Type 4; IP66
MaterialMild Steel
Panel Size255 x 355 mm / 10.04 x 13.98 in
Body Thickness18 ga / 1.21 mm
Door Thickness18 ga / 1.21 mm
Latch TypeQuarter-turn
Color CodeRAL 7035
BULLETIN NUMBERA4G



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Hoffman G300400200G Data SheetClick to View
Hoffman G300400200G Declaration of ComplianceClick to View
Hoffman G300400200G CERT-00074Click to View
Hoffman G300400200G CE-00040Click to View
Hoffman G300400200G Fusion G7, Type 4, 12 Instruction ManualClick to View
Hoffman G300400200G Hinge Pin Kits Instruction ManualClick to View
