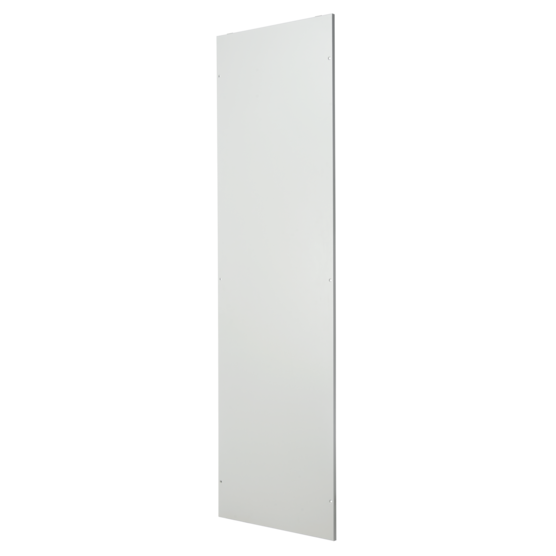

Hoffman P2CS208 | ProLine G2 Side Cover, fits 2000x800mm, Lt Gray, Steel

ProLine G2 Solid Sides enclose the open sides of the modular enclosure frame and have innovative design elements incorporated to ensure fast installation and enhanced structural support.

Main Features

• Hinge hanger on top for easy alignment
• Formed steel hems on the sides of the covers for enhanced structural support and to protect user from sharp edges
• Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
• Attach to enclosure frame with low-profile, flat head screws
• Door can be reversed without removing the side covers
• Used on the sides of the ProLine G2 frame
• Not suitable as a barrier between enclosures (instead use the ProLine G2 barrier panel)
• Two grounding studs
• All mounting hardware included
• Side Covers are finished with paint over plated surfaces

Hoffman On Demand Alternatives

• Catalog #: P2CS228
• Catalog #: P2CS226
• Catalog #: P2CS208
• Catalog #: P2CS206
• Catalog #: P2CS186

Specifications

Material	Mild Steel
Finish	Powder Coated
Color	Light Gray
Color Code	RAL 7035
Thickness	16 ga / 1.52 mm
Fits Frame Height	2000 x 800 mm
Weight	51 lb
BULLETIN NUMBER	P40
