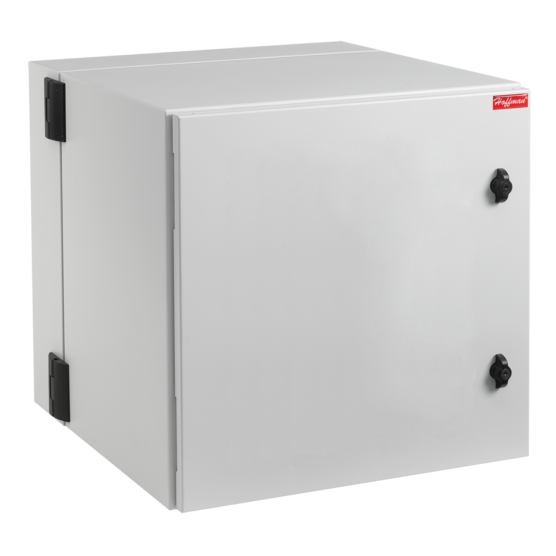

Hoffman PTHS242424G4 | ProTek D-H Solid Type 4; 4X; 12, 24.09x23.62x24.02, Lt Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman PTHS242424G4 | ProTek D-H Solid Type 4; 4X; 12, 24.09x23.62...
Description
Description
ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-inch rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.
Main Features
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
Industry Standards
- UL 508A Listed; File Number E61997
- cUL Listed per CSA C22.2 No. 94; File Number E619967
- Solid Door: Type 4 and 12
- Window Door: Type 12
- Solid Door, Stainless Steel: Type 4, 4X and 12
- NEMA / EEMAC: Type 4, 4X or 12
- IEC 60529, IP66 or IP55, IK 10
Related Accessories
- Catalog #: PTRA24T
- Catalog #: PTRA24S
- Catalog #: CP2020
- Catalog #: CP2020W
- Catalog #: AS1032
- Catalog #: P1032CN
- Catalog #: CPMK24
- Catalog #: EMS1918
Specifications
| Height | 24.09 in / 612 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 24.02 in / 610 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 14 ga / 1.9 mm |
| Door Thickness | 16 ga / 1.52 mm |
| Rack Units | 12 |
| Optional Wood Panel | CP2020W |
| BULLETIN NUMBER | DWDH2 |
